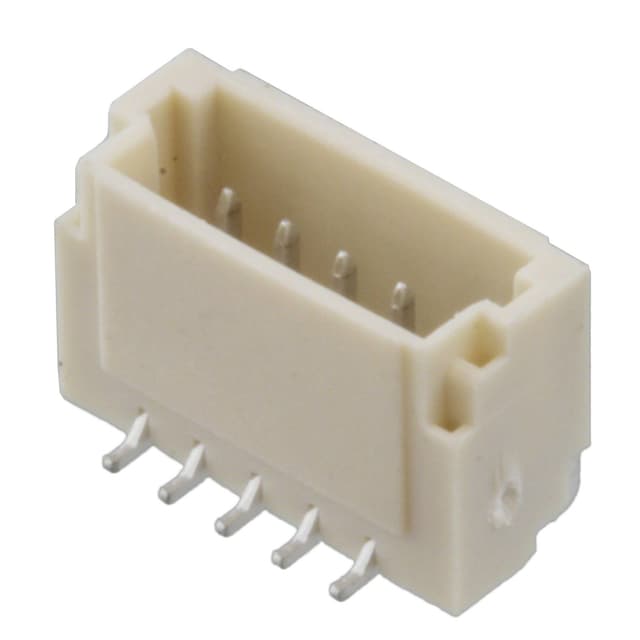

WURTH 665305124022
WURTH 665305124022

WURTH 665305124022

Manufacturer No:

665305124022

Manufacturer:

WURTH

Package:

Description:

WR-WTB Series 1-Row Header Solder Phosphor Bronze Cut Tape (CT) Surface Mount Tin Liquid Crystal Polymer (LCP) 5-Position Board to Cable/Wire

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

665305124022 information

WURTH 665305124022 technical specifications, attributes, parameters and parts with similar specifications to WURTH 665305124022.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 5
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Housing Material
  • Nylon
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-WTB
  • Feature
  • Pick and Place, Solder Retention
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 5
  • Color
  • Beige
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 50V
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Tin
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 990.6?m
  • Orientation
  • Vertical
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.039 1.00mm
  • Insulation Color
  • Beige
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 1mm
  • Number of Contacts
  • 5
  • Contact Finish - Post
  • Tin
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for WURTH 665305124022.

Datasheets:

Environmental Information:

665305124022 Overview


Header packaging is included.This device has a mounting type of Surface Mount.We package the product with a Cut Tape (CT) case.The product is part of the WR-WTB Series.It has a 5 pin configuration.This feature makes it more powerful in a number of ways due to its Pick and Place, Solder Retention feature.You've got Surface Mount mounted on the part.Memory is operating at 50V volts.This device runs at -25°C~85°C operating temperature.

665305124022 Features


WR-WTB series


665305124022 Applications


There are a lot of Würth Elektronik
665305124022 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
