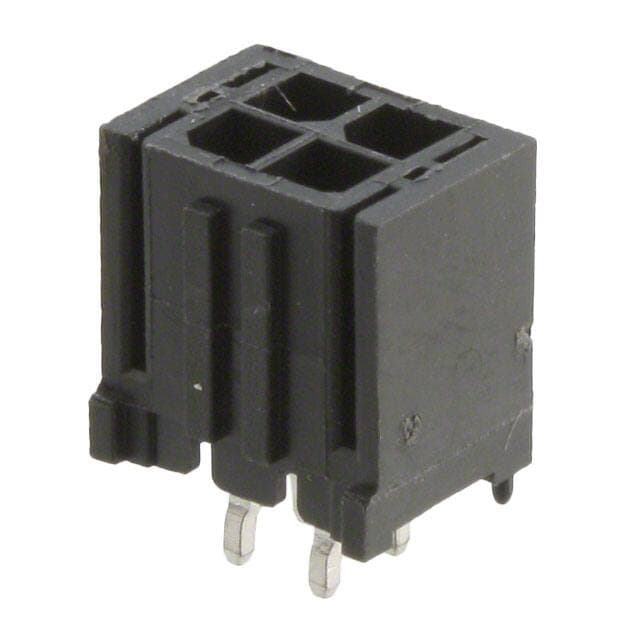

WURTH 66200421122
WURTH 66200421122

WURTH 66200421122

Manufacturer No:

66200421122

Manufacturer:

WURTH

Package:

Description:

WR-MPC3 Series 2-Row Header Kinked Pin, Solder Copper Alloy Tube Through Hole Tin Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.390 9.91mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

66200421122 information

WURTH 66200421122 technical specifications, attributes, parameters and parts with similar specifications to WURTH 66200421122.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 4
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Housing Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tube
  • Series
  • WR-MPC3
  • Feature
  • Board Guide
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Kinked Pin, Solder
  • Connector Type
  • Header
  • Number of Positions
  • 4
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -25°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 5A
  • Pitch
  • 3mm
  • Orientation
  • Vertical
  • Insulation Height
  • 0.390 9.91mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 5A
  • Pitch - Mating
  • 0.118 3.00mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.118 (3.00mm)
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 3mm
  • Number of Contacts
  • 4
  • Contact Finish - Post
  • Tin
  • Contact Gender
  • Male
  • Operating Supply Voltage
  • 250V
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 1GOhm
  • Insulation
  • Insulated
  • Height
  • 9.9mm

Download datasheets and manufacturer documentation for WURTH 66200421122.

Datasheets:

Environmental Information:

66200421122 Overview


Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the WR-MPC3 Series.Devices with 4 pins are available.You should use it when it's below 105°C.A minimum temperature of -25°C is required for the operation of this device.In many ways, its Board Guide feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -40°C~105°C Operating Temperature.

66200421122 Features


WR-MPC3 series


66200421122 Applications


There are a lot of Würth Elektronik
66200421122 Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
