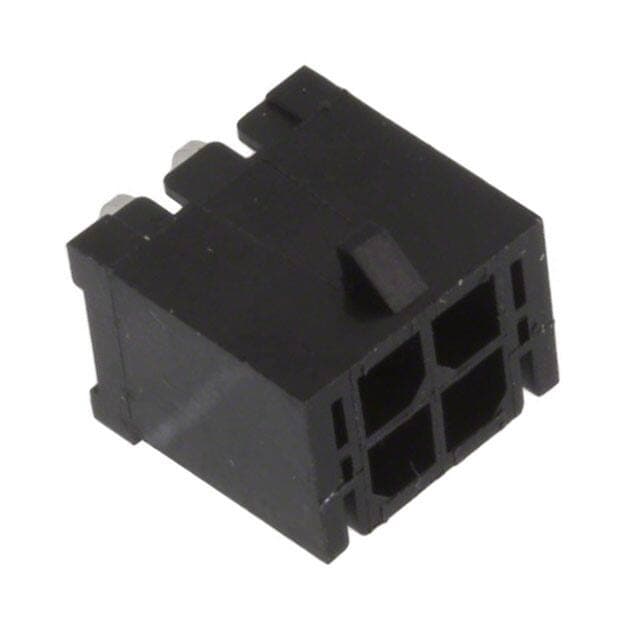

WURTH 66200421022
WURTH 66200421022

WURTH 66200421022

Manufacturer No:

66200421022

Manufacturer:

WURTH

Package:

Description:

WR-MPC3 Series 2-Row Header Solder Copper Alloy Tube Through Hole, Right Angle Tin Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.290 7.37mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

66200421022 information

WURTH 66200421022 technical specifications, attributes, parameters and parts with similar specifications to WURTH 66200421022.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Number of Pins
  • 4
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Housing Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tube
  • Series
  • WR-MPC3
  • Feature
  • Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 4
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Fastening Type
  • Locking Ramp
  • Contact Finish - Mating
  • Tin
  • Current Rating (Amps)
  • 5A
  • Pitch
  • 2.9972mm
  • Insulation Height
  • 0.290 7.37mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 5A
  • Pitch - Mating
  • 0.118 3.00mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.118 (3.00mm)
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 3mm
  • Number of Contacts
  • 4
  • Contact Finish - Post
  • Tin
  • Operating Supply Voltage
  • 250V
  • Contact Resistance
  • 10mOhm
  • Height
  • 8.9mm
  • Length
  • 9.9mm
  • Width
  • 9.7mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for WURTH 66200421022.

Datasheets:

Environmental Information:

66200421022 Overview


The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number WR-MPC3 belongs to the WR-MPC3 Series.A 4 pin is provided on the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.

66200421022 Features


WR-MPC3 series


66200421022 Applications


There are a lot of Würth Elektronik
66200421022 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
