WURTH 618009231121
Manufacturer No:
618009231121
Manufacturer:
Package:
Description:

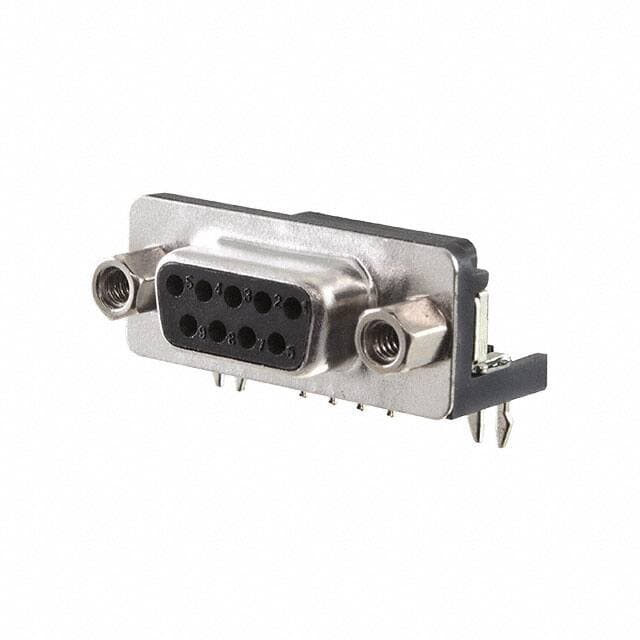

WR-DSUB Series D-Sub Receptacle, Female Sockets 9-Position Female Signal Solder 1 DE E Through Hole, Right Angle Copper Alloy Gold Steel, Nickel Plated
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
618009231121 information
WURTH 618009231121 technical specifications, attributes, parameters and parts with similar specifications to WURTH 618009231121.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Gold
- Mount
- Through Hole
- Mounting Type
- Through Hole, Right Angle
- Number of Pins
- 9
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Housing Material
- Steel
- Shell Material, Finish
- Steel, Nickel Plated
- Operating Temperature
- -55°C~105°C
- Packaging
- Tray
- Series
- WR-DSUB
- Feature
- Board Lock
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 9
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Color
- Black
- Number of Rows
- 2
- Gender
- Female
- Voltage - Rated
- 125VAC
- Current Rating (Amps)
- 3A
- Pitch
- 2.84mm
- Orientation
- Right Angle
- Depth
- 18.5mm
- Current Rating
- 3A
- Contact Finish
- Gold
- Number of Contacts
- 9
- Operating Supply Voltage
- 125V
- Contact Resistance
- 30mOhm
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Connector Style
- D-Sub
- Contact Form
- Stamped
- Shell Size, Connector Layout
- 1 DE E
- Backset Spacing
- 0.318 (8.08mm)
- Length
- 30.8mm
- Width
- 12.5mm
- Material Flammability Rating
- UL94 V-0
- REACH SVHC
- Unknown
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for WURTH 618009231121.
Datasheets:
618009231121 Overview
Packaging is Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the WR-DSUB Series.There are 9 pins on the device.If the temperature is below 85°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.It runs on 125V voltage.Devices operate at -55°C~105°C operating temperatures.
618009231121 Features
WR-DSUB series
618009231121 Applications
There are a lot of Würth Elektronik
618009231121 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
