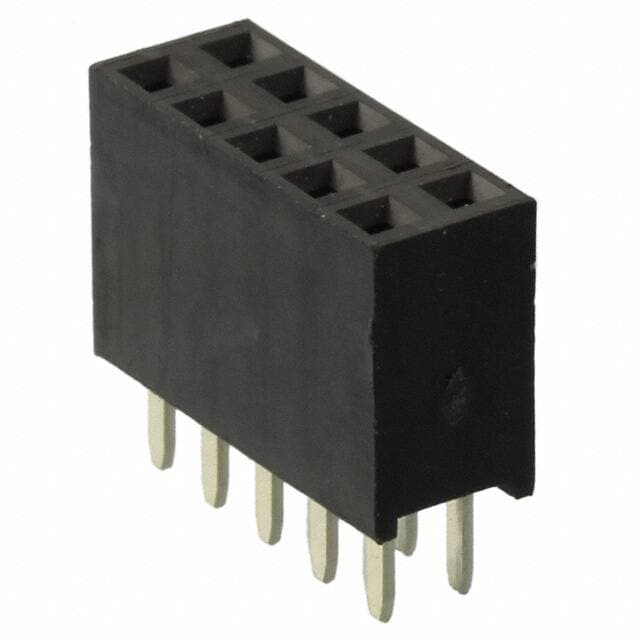

WURTH 61301021821
WURTH 61301021821

WURTH 61301021821

Manufacturer No:

61301021821

Manufacturer:

WURTH

Package:

Description:

2 Rows Header Solder Copper Alloy Through Hole Tray Gold Polybutylene Terephthalate (PBT) 10 Positions Forked

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

61301021821 information

WURTH 61301021821 technical specifications, attributes, parameters and parts with similar specifications to WURTH 61301021821.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 10
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT)
  • Housing Material
  • PBT
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Series
  • WR-PHD
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 10
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 250VAC
  • Fastening Type
  • Push-Pull
  • Contact Type
  • Forked
  • Current Rating (Amps)
  • 3A
  • Pitch
  • 2.54mm
  • Orientation
  • Vertical
  • Insulation Height
  • 0.331 8.40mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.122 3.10mm
  • Lead Pitch
  • 2.54mm
  • Number of Contacts
  • 10
  • Contact Finish - Post
  • Gold
  • Contact Gender
  • Female
  • Operating Supply Voltage
  • 250V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 1GOhm
  • Height
  • 8.6mm
  • Length
  • 5.08mm
  • Width
  • 13.2mm
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 61301021821.

Datasheets:

Environmental Information:

61301021821 Overview


This product is packaged in a Header cartonThis device's mounting type is Through Hole.It's packaged in a Tray case.WR-PHD Series product.You'll find 10 pins on the device.The best time to use this device is when the temperature is below 125°C.It has to be at least -40°C degrees to work.Through Hole is mounting the part.Its operating voltage is 250V.Running in -40°C~105°C Operating Temperature.

61301021821 Features


WR-PHD series


61301021821 Applications


There are a lot of Würth Elektronik
61301021821 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
