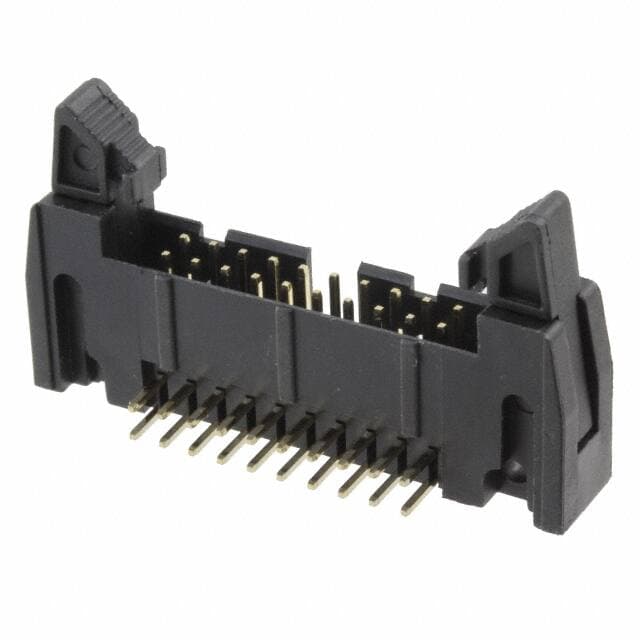

WURTH 61202022121
WURTH 61202022121

WURTH 61202022121

Manufacturer No:

61202022121

Manufacturer:

WURTH

Package:

Description:

WR-BHD Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 20-Position Board to Cable/Wire 0.327 8.30mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

61202022121 information

WURTH 61202022121 technical specifications, attributes, parameters and parts with similar specifications to WURTH 61202022121.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Number of Pins
  • 20
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT)
  • Housing Material
  • PBT
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tray
  • Series
  • WR-BHD
  • Feature
  • Keying Slot
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 20
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Pitch
  • 2.54mm
  • Orientation
  • Right Angle
  • Insulation Height
  • 0.327 8.30mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.134 3.40mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 2.54mm
  • Number of Contacts
  • 20
  • Contact Length - Mating
  • 0.224 5.70mm
  • Contact Gender
  • Male
  • Operating Supply Voltage
  • 250V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 1GOhm
  • Insulation
  • Insulated
  • Height
  • 8.3mm

Download datasheets and manufacturer documentation for WURTH 61202022121.

Datasheets:

Environmental Information:

61202022121 Overview


Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the WR-BHD Series, it belongs to the range of products of that series.20 pins are on the device.A temperature below 125°C is best for using it.The device must run at -40°C degrees.A number of features make the Keying Slot feature more powerful.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-40°C~125°C Operating Temperature is the default operating temperature for the device.

61202022121 Features


WR-BHD series


61202022121 Applications


There are a lot of Würth Elektronik
61202022121 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
