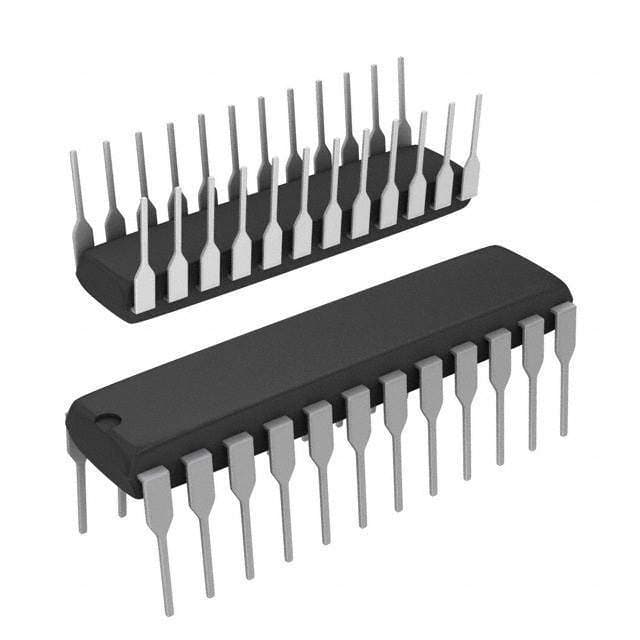

Renesas 6116SA25TPG
Renesas 6116SA25TPG

Renesas 6116SA25TPG

Manufacturer No:

6116SA25TPG

Manufacturer:

Renesas

Package:

PDIP

Description:

5V V Through Hole 24 Pin Memory IC 16 kb kb 31.75mm mm 100mA mA 8b b

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

6116SA25TPG information

Renesas 6116SA25TPG technical specifications, attributes, parameters and parts with similar specifications to Renesas 6116SA25TPG.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • PDIP
  • Number of Pins
  • 24
  • Packaging
  • Bulk
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 24
  • ECCN Code
  • EAR99
  • Terminal Finish
  • MATTE TIN
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Subcategory
  • SRAMs
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Pin Count
  • 24
  • Operating Supply Voltage
  • 5V
  • Temperature Grade
  • COMMERCIAL
  • Interface
  • Parallel
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 4.5V
  • Memory Size
  • 2kB
  • Number of Ports
  • 1
  • Nominal Supply Current
  • 100mA
  • Memory Type
  • RAM, SDR, SRAM - Asynchronous
  • Access Time
  • 25 ns
  • Organization
  • 2KX8
  • Output Characteristics
  • 3-STATE
  • Address Bus Width
  • 11b
  • Density
  • 16 kb
  • Standby Current-Max
  • 0.002A
  • I/O Type
  • COMMON
  • Sync/Async
  • Asynchronous
  • Word Size
  • 8b
  • Length
  • 31.75mm
  • Width
  • 7.62mm
  • Thickness
  • 3.3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas 6116SA25TPG.

Datasheets:

6116SA25TPG Overview


RAM, SDR, SRAM - Asynchronous is its memory type. It is available in a case with a Bulk shape. As you can see, it is embedded in PDIP case. There is an 2kB memory capacity on the chip. As you can see from the diagram, the chip is planted with 24 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. It is encased in an 24-pin package that contains this ic memory chip. It has 24 pins indicating it has 24 memory locations. It is noted that the operating supply voltage of this memory is 5V. Chips such as this one are mounted using Through Hole mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 100mA. An address can be read and/or written to one memory address using 1 ports on the chip. This memory chip requires a mere 5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of 0°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 70°Cc, otherwise, damage could be done to it. Generally, this component is considered a type of SRAMs. This memory ics requires a minimum voltage of 4.5V. In order for it to operate properly, its voltage should not exceed 5.5V.
