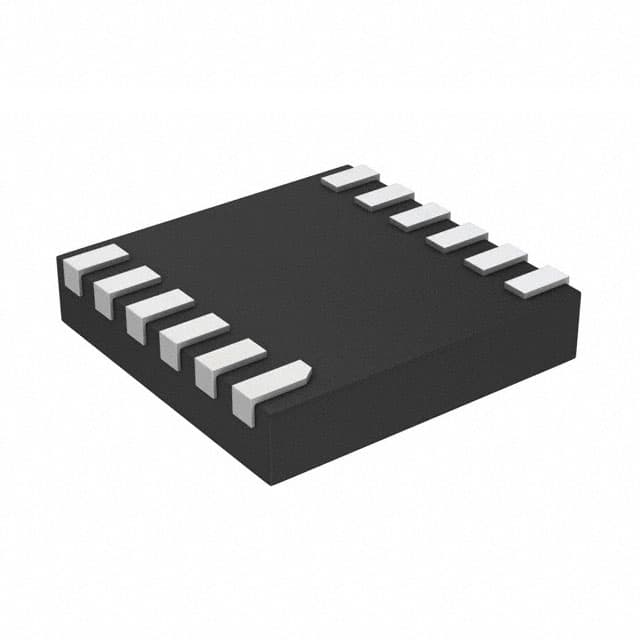

Renesas 5X2503-000NDGI

Manufacturer No:

5X2503-000NDGI

Manufacturer:

Renesas

Package:

Description:

1.8V Clock Generators 12 Pins 12 Terminals Cut Tape

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5X2503-000NDGI information

Renesas 5X2503-000NDGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 5X2503-000NDGI.

Type
Parameter

Factory Lead Time
12 Weeks

Surface Mount
YES

Number of Pins
12

Packaging
Cut Tape

Published
2016

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

Terminal Finish
Tin (Sn)

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.8V

Terminal Pitch
0.4mm

Frequency
125MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Supply Voltage-Max (Vsup)
1.89V

Temperature Grade
INDUSTRIAL

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, PROCESSOR SPECIFIC

Primary Clock/Crystal Frequency-Nom
26MHz

Length
2.5mm

Height Seated (Max)
1mm

Width
2.5mm

Thickness
900?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 5X2503-000NDGI.

Datasheets:

integrateddevicetechnology-5x2503000ndgi-datasheets-8898.pdf

5X2503-000NDGI Overview

As a clock IC, PLLs is packaged using the Cut Tape method. Under reflowing process, this clock generator ic is able to sustain a maximum temperature of 260. 12 terminations can be found in frequency synthesizer. Basically, a voltage of 1.8V should be applied to this electronic frequency generator. The maximal supply voltage this clock generator would take is 1.89V. The number of uPs/uCs/Peripheral IC this time clock generator incorporates is CLOCK GENERATOR, PROCESSOR SPECIFIC. The supply voltage for this frequency synthesizer should be kept above 1.71V for safety considerations. It may cause ha85°Cards once the operating temperature for the device is set in excess of 85°C. This frequency generator may fail to start up if the ambient temp is lower than -40°C. This clock-generating IC is a 12-bit device designed explicitly for microprocessors. There is an available 12 pin on the clock generators. Frequency generator is able to reali125MHze high efficiency when operating at a frequency of 125MHz.

5X2503-000NDGI Features

Supply voltage of 1.8V

5X2503-000NDGI Applications

There are a lot of Integrated Device Technology (IDT)
5X2503-000NDGI Clock Generators applications.

Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
