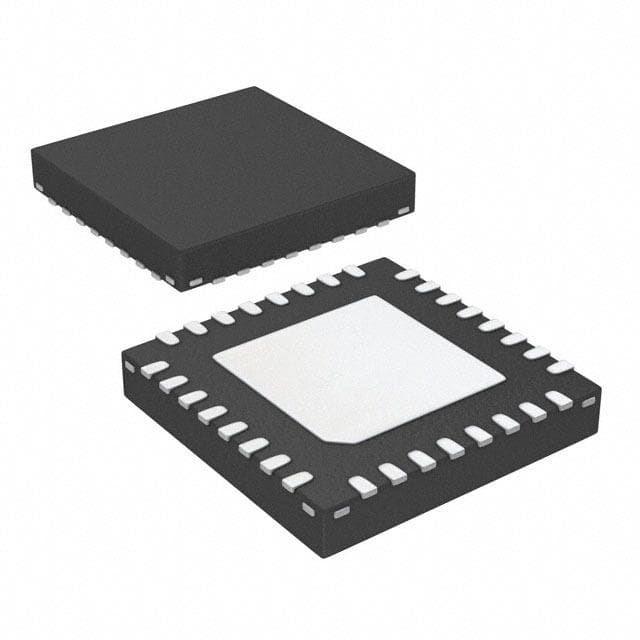

Renesas 5V49EE902NLGI
Manufacturer No:
5V49EE902NLGI
Manufacturer:
Package:
Description:
3.3V 500MHz Clock Generators 32 Pins 32 Terminals
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
5V49EE902NLGI information
Renesas 5V49EE902NLGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 5V49EE902NLGI.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Number of Pins
- 32
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Terminal Position
- QUAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Frequency
- 500MHz
- Time@Peak Reflow Temperature-Max (s)
- 30
- Pin Count
- 32
- Operating Supply Voltage
- 3.3V
- Number of Elements
- 4
- Temperature Grade
- INDUSTRIAL
- Number of Circuits
- 1
- Min Supply Voltage
- 3.135V
- Operating Supply Current
- 190mA
- Nominal Supply Current
- 210mA
- Frequency (Max)
- 500MHz
- Family
- 5V
- Output Characteristics
- 3-STATE
- Input
- Crystal
- Logic IC Type
- PLL BASED CLOCK DRIVER
- Max Duty Cycle
- 60 %
- Same Edge Skew-Max (tskwd)
- 0.075 ns
- Number of True Outputs
- 7
- Length
- 5mm
- Height Seated (Max)
- 0.9mm
- Width
- 5mm
- Thickness
- 900?m
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas 5V49EE902NLGI.
5V49EE902NLGI Overview
In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. In it, there are 32 terminations to be found. This time clock generator should be voltaged at 3.3V. A clock generator's input is called Crystal and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 500MHz is available. Microprocessors are specifically designed to use this clock-generating IC, which has a 32-bit output. PF synthesizers is equipped with 32 pins. Electronic frequency generator can operate at low temperatures and can perform -40°C operations at a time. The RF synthesizer can still operate at 85°C with attenuated performance. PLL clock can handle a voltage of 3.3V as its supply voltage. There is a low timing skew at 0.075 nsmax with this RF synthesizer. The clock generator is configured with 7 pins for enabling true outputs. A search for the 5V family will yield similar electronic components. This clock generator cannot be powered by voltages higher than 3.465V. Its lowest supply voltage is 3.135V. Electronic frequency generator is mainly used for constructing PLL BASED CLOCK DRIVER logic circuits. When operated at 500MHz, frequency synthesizer achieves high efficiency. For the time clock generator to operate properly, 190mA of supply current are required. An 8-element clock PLL with a low jitter performance is available on this page.
5V49EE902NLGI Features
Supply voltage of 3.3V
Operating supply voltage of 3.3V
7 true outputs
5V49EE902NLGI Applications
There are a lot of Integrated Device Technology (IDT)
5V49EE902NLGI Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
