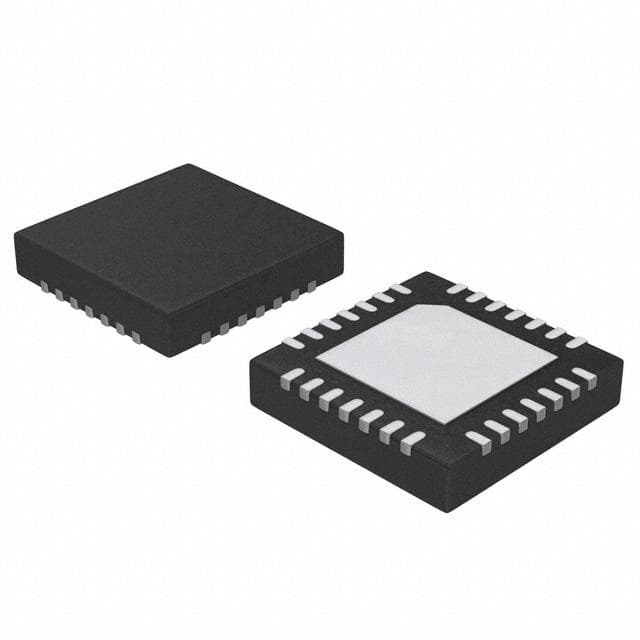

Renesas 5V49EE702NDGI8

Manufacturer No:

5V49EE702NDGI8

Manufacturer:

Renesas

Package:

Description:

3.3V 500MHz Clock Generators 28 Pins 28 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5V49EE702NDGI8 information

Renesas 5V49EE702NDGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 5V49EE702NDGI8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Number of Pins
28

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
INDUSTRIAL

Frequency (Max)
500MHz

Family
5V

Output Characteristics
3-STATE

Input
Crystal

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.075 ns

Number of True Outputs
6

Length
4mm

Width
4mm

Thickness
900?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 5V49EE702NDGI8.

Datasheets:

integrateddevicetechnology-5v49ee702ndgi8-datasheets-9855.pdf

integrateddevicetechnology-5v49ee702ndgi8-datasheets-4762.pdf

5V49EE702NDGI8 Overview

This clock generator ic can sustain a maximum temperature of 260 during reflowing. It contains 28 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3.3V. The input of this clock generator is designed to be Crystal. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 500MHz Max with this clock-based frequency generator. This clock generator would require a maximum supply voltage of 3.465V. The clock-generating IC is a 28-bit device designed specifically for microprocessors. It is possible to connect to the frequency generators via 28 pins. Despite its low-temperature operation, this clock generator ic is capable of -40°C operations. Despite its attenuated performance, this frequency synthesizer can last at 85°C. There is a maximum supply voltage of 3.3V that clock generator can handle. At 0.075 ns Max, this clock generator offers low timing skew. 6 high true output enable pins are available on this clock generator. When searching for parts of the 5V family, similar frequency generators will be found. Logic circuits based on PLL BASED CLOCK DRIVER logic use this electronic frequency generator.

5V49EE702NDGI8 Features

Supply voltage of 3.3V
Operating supply voltage of 3.3V
6 true outputs

5V49EE702NDGI8 Applications

There are a lot of Integrated Device Technology (IDT)
5V49EE702NDGI8 Clock Generators applications.

Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
