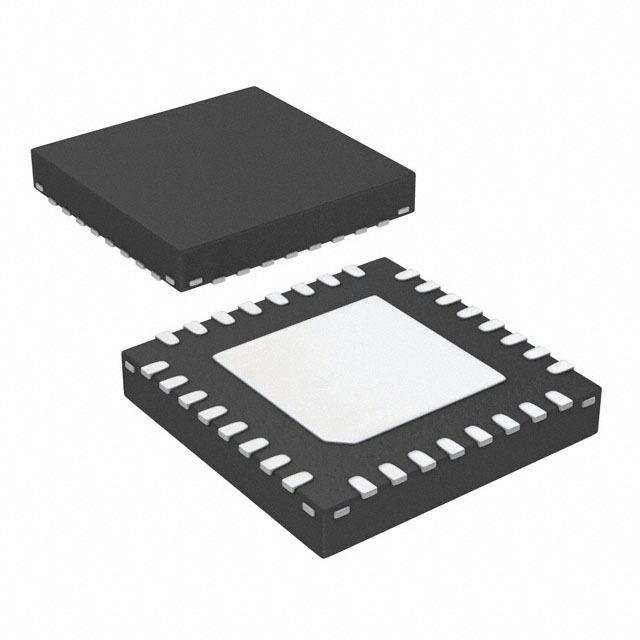

Renesas 5V19EE904NLGI8

Manufacturer No:

5V19EE904NLGI8

Manufacturer:

Renesas

Package:

Description:

3.3V 200MHz Clock Generators 32 Pins 32 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5V19EE904NLGI8 information

Renesas 5V19EE904NLGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 5V19EE904NLGI8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Number of Pins
32

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
INDUSTRIAL

Frequency (Max)
200MHz

Family
5V

Output Characteristics
3-STATE

Input
Crystal

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.075 ns

Number of True Outputs
7

Length
5mm

Height Seated (Max)
0.9mm

Width
5mm

Thickness
900?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 5V19EE904NLGI8.

Datasheets:

integrateddevicetechnology-5v19ee904nlgi8-datasheets-9444.pdf

5V19EE904NLGI8 Overview

This clock generator will sustain a maximum temperature of 260 when reflown. There are 32 terminations found in the file. The clock generator ic should be grounded with a voltage of 3.3V. This clock generator receives its inputs from Crystal, which is designed to be the clock source. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. An upper frequency limit of 200MHz Max can be achieved with this clock-based frequency synthesizer. Approximately 3.465V is the maximum supply voltage needed by this time clock generator. There is a 32-bit clock-generating IC built specifically for microprocessors in this frequency generator. PLL is designed with 32 pins. Designed to operate at low temperatures, this frequency generator performs -40°C operations per second. There is still a possibility of the electronic frequency generator working at 85°C with attenuated performance. The supply voltage should be maintained at 3.3V for high efficiency. The maximal same edge skew (tskwd) can not be exceeded. 7 pins are configured for high true output enable in this clock generator. This PLL belongs to the family of 5V. The PLL BASED CLOCK DRIVER logic circuits primarily use this clock device.

5V19EE904NLGI8 Features

Supply voltage of 3.3V
Operating supply voltage of 3.3V
7 true outputs

5V19EE904NLGI8 Applications

There are a lot of Integrated Device Technology (IDT)
5V19EE904NLGI8 Clock Generators applications.

Wireless infrastructure
Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
