Renesas 5V19EE604NDGI

Manufacturer No:

5V19EE604NDGI

Manufacturer:

Renesas

Package:

Description:

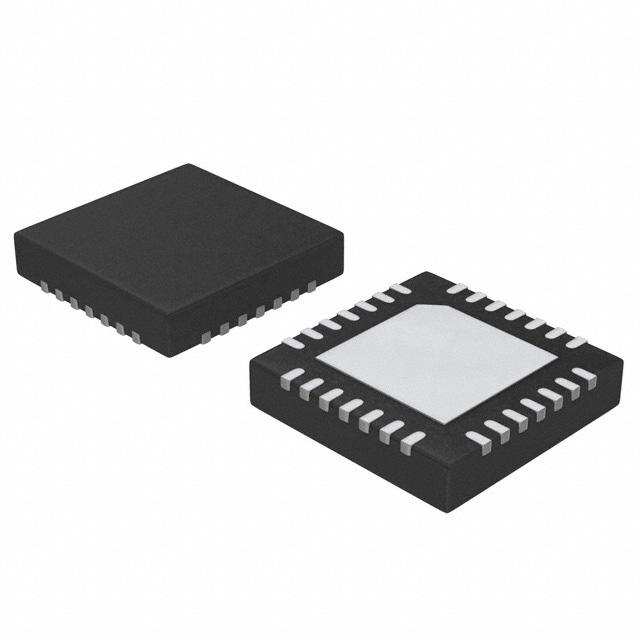

3.3V 200MHz Clock Generators 28 Pins 28 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5V19EE604NDGI information

Renesas 5V19EE604NDGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 5V19EE604NDGI.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
28

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

Number of Outputs
6

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Number of Elements
4

Number of Circuits
1

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Frequency (Max)
200MHz

Family
5V

Output Characteristics
3-STATE

Input
Crystal

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.075 ns

Length
4mm

Width
4mm

Thickness
900?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 5V19EE604NDGI.

Datasheets:

integrateddevicetechnology-5v19ee604ndgi-datasheets-2241.pdf

5V19EE604NDGI Overview

Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 28 terminations. Clock generator ics require a voltage of 3.3V. As the Clock PLL's input, Crystal is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 200MHz. It is a 28-bit IC that is designed for microprocessors specifically. The frequency synthesizer has 28 pins that are available. A frequency generator with -40°C operations has an impressive low-temperature performance. At a temperature of 85°C, the clock generator ic can operate with attenuated performance. In terms of the supply voltage, analog clock generator can handle 3.3V volts. The frequency synthesizer features 6 signal outputs to ensure as high a frequency as possible. As a result of this digital clock generator, there is a low timing skew at 0.075 ns max. By searching for the 5V family, it is possible to find similar electrical components. A voltage exceeding 3.465V is not acceptable for supply to this frequency generator. This clock generator ic requires a voltage supply no lower than 3.135V. Logic circuits that use PLL BASED CLOCK DRIVER logic are composed of this analog clock generator. I would like to briefly introduce you to a 4-element frequency synthesizer that performs well with low jitter.

5V19EE604NDGI Features

Supply voltage of 3.3V
Operating supply voltage of 3.3V

5V19EE604NDGI Applications

There are a lot of Integrated Device Technology (IDT)
5V19EE604NDGI Clock Generators applications.

10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
Test equipment
