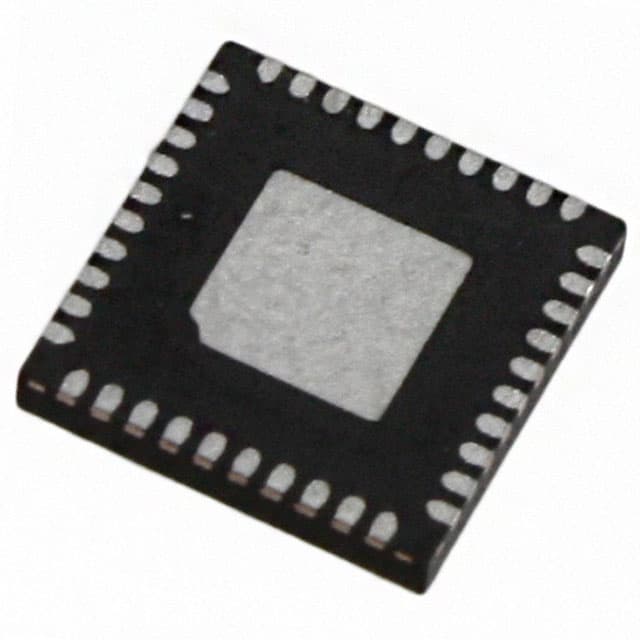

Renesas 5T93GL10NLGI8

Manufacturer No:

5T93GL10NLGI8

Manufacturer:

Renesas

Package:

Description:

1 Circuit 650MHz 2.5V Clock Buffer QUAD 40 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5T93GL10NLGI8 information

Renesas 5T93GL10NLGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 5T93GL10NLGI8.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
40

Packaging
Tape & Reel (TR)

Published
2014

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
40

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
2.7V

Power Supplies
2.5V

Supply Voltage-Min (Vsup)
2.3V

Number of Circuits
1

Frequency (Max)
650MHz

Family
5T

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup
2 ns

Propagation Delay (tpd)
2 ns

Same Edge Skew-Max (tskwd)
0.025 ns

Number of True Outputs
10

Length
6mm

Width
6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 5T93GL10NLGI8.

Datasheets:

integrateddevicetechnology-5t93gl10nlgi8-datasheets-5206.pdf

5T93GL10NLGI8 Overview

This package is packaged in the form of a Tape & Reel (TR). For normal operation, 650MHz is the maximum value. It has 40 terminations in it, which means that it is terminated. Supply voltages of 2.5V are capable of achieving high efficiency. It has been positioned in the way of Surface Mount. There are 40 pins on the clock buffer. During operation, 40 pins are used. I have enclosed this circuit clock in Clock Drivers for your convenience. The clock switch operates at a minimum working temperature of -40°C in order to maintain reliability. It is possible to achieve stable operation by setting the maximum operating temperature to 85°C. A member of the 5T family, this clock buffer is a digital camera. Vsup is set to 2.7V as the maximum supply voltage. The circuit uses a logic IC with a value of LOW SKEW CLOCK DRIVER as the input. As a general rule, the supply voltage (Vsup) should be maintained above 2.3V. The timeing clock is powered by a power supply of 2.5V volts. A total of 10 outputs are available.

5T93GL10NLGI8 Features

40 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

5T93GL10NLGI8 Applications

There are a lot of Integrated Device Technology (IDT)
5T93GL10NLGI8 Clock Buffers & Drivers applications.

Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
