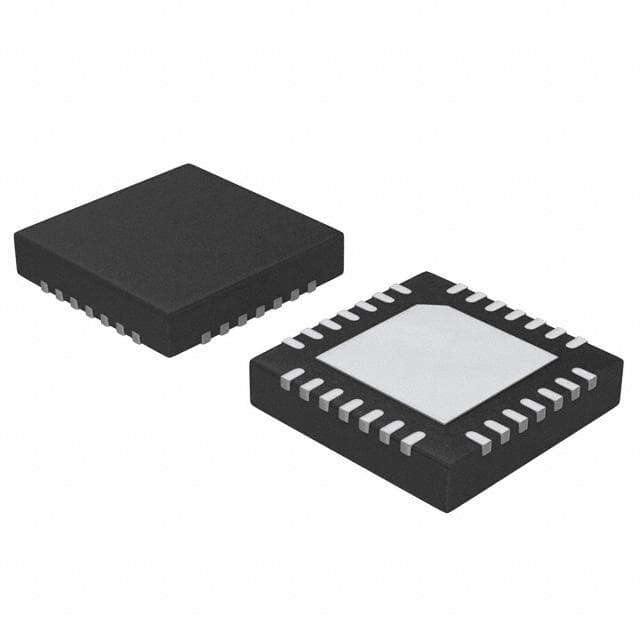

Renesas 5P49EE805NDGI8

Manufacturer No:

5P49EE805NDGI8

Manufacturer:

Renesas

Package:

QFN

Description:

1.8V 100MHz Clock Generators QFN 28 Terminals Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5P49EE805NDGI8 information

Renesas 5P49EE805NDGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 5P49EE805NDGI8.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
QFN

Packaging
Tape & Reel (TR)

Published
2008

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Generators

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Supply Voltage
1.8V

Terminal Pitch
0.4mm

JESD-30 Code
S-XQCC-N28

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Circuits
1

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, VIDEO

Frequency (Max)
100MHz

Primary Clock/Crystal Frequency-Nom
40MHz

Length
4mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 5P49EE805NDGI8.

Datasheets:

integrateddevicetechnology-5p49ee805ndgi8-datasheets-0389.pdf

5P49EE805NDGI8 Overview

As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. This clock generator is embedded in the QFN package. 28 terminations can be found in frequency synthesizer. Basically, a voltage of 1.8V should be applied to this electronic frequency generator. Crystal is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 100MHz Max. The number of uPs/uCs/Peripheral IC this time clock generator incorporates is CLOCK GENERATOR, VIDEO. This clock generator ic has an impressive low-temperature operating performance and is capable of -40°C operations. Even at 85°C, this frequency synthesizer is possible to last with attenuated performance. And basically, this clock generator is often classified as a kind of Clock Generators.

5P49EE805NDGI8 Features

Available in the QFN
Supply voltage of 1.8V

5P49EE805NDGI8 Applications

There are a lot of Integrated Device Technology (IDT)
5P49EE805NDGI8 Clock Generators applications.

Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
