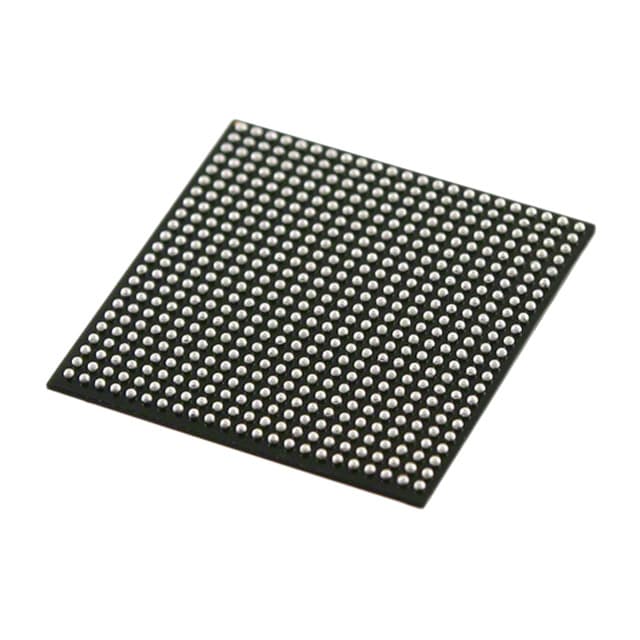

INTEL 5CEBA9F23C7N
Manufacturer No:
5CEBA9F23C7N
Manufacturer:
Package:
484-BGA
Description:
2mm mm FPGAs Cyclone® V E Series 484-BGA 1mm mm 484
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
5CEBA9F23C7N information
INTEL 5CEBA9F23C7N technical specifications, attributes, parameters and parts with similar specifications to INTEL 5CEBA9F23C7N.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 484-BGA
- Surface Mount
- YES
- Operating Temperature
- 0°C~85°C TJ
- Packaging
- Tray
- Series
- Cyclone® V E
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 484
- HTS Code
- 8542.39.00.01
- Subcategory
- Field Programmable Gate Arrays
- Technology
- CMOS
- Voltage - Supply
- 1.07V~1.13V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Supply Voltage
- 1.1V
- Terminal Pitch
- 1mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- 5CEBA9
- JESD-30 Code
- S-PBGA-B484
- Number of Outputs
- 224
- Qualification Status
- Not Qualified
- Number of I/O
- 224
- Number of Inputs
- 224
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 301000
- Total RAM Bits
- 14251008
- Number of LABs/CLBs
- 113560
- Length
- 23mm
- Height Seated (Max)
- 2mm
- Width
- 23mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for INTEL 5CEBA9F23C7N.
Datasheets:
5CEBA9F23C7N Overview
This package is included in the 484-BGA package and is available for purchase. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. The I/Os are designed to facilitate a more coherent transfer of data. Logic elements/cells form the fundamental building block of a computer. 1.1V volts power it. The Field Programmable Gate Arrays family of FPGAs includes this part. Using a Surface Mount connector, you can mount this FPGA module on the development board. In order for it to operate, the supply voltage must be 1.07V~1.13V . An FPGA belonging to the Cyclone® V E series is referred to as an FPGA. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. With this device, you will be able to make use of 224 outputs. Using the Tray layout, this FPGA model can be contained in a very small amount of space. The total number of terminations is 484. This device is equipped with 14251008 RAM bits in terms of its RAM si14251008e. Parts related to this part can be found using its base part number 5CEBA9. An array of 113560 LABs/CLBs is built into the FPGA. It is powered by a 1.11.2/3.32.5V battery, which can be purchased separately.
5CEBA9F23C7N Features
224 I/Os
Up to 14251008 RAM bits
5CEBA9F23C7N Applications
There are a lot of Intel
5CEBA9F23C7N FPGAs applications.
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
- Aerospace and Defense
- Medical Electronics
- Audio
