MAXIM 5962-9073703MPA

Manufacturer No:

5962-9073703MPA

Manufacturer:

MAXIM

Package:

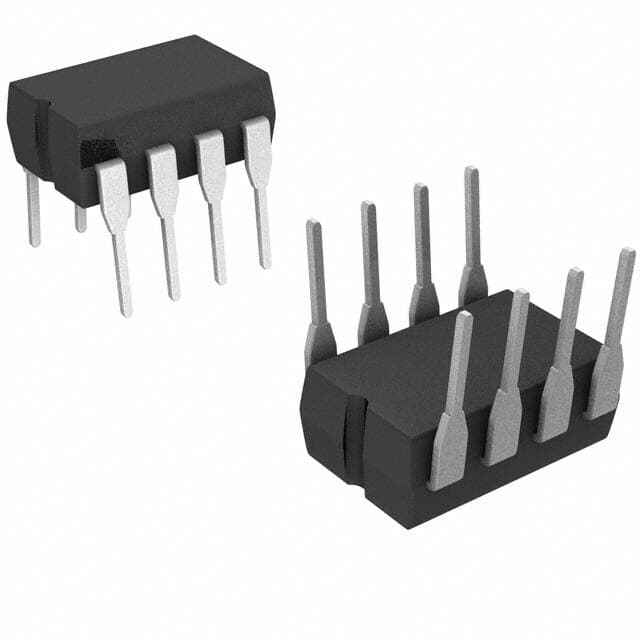

8-CDIP (0.300, 7.62mm)

Description:

175ns, 145ns SPDT 30Ohm DUAL Analog Switches BREAK-BEFORE-MAKE 8 Pins 250pA 15V 8-CDIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5962-9073703MPA information

MAXIM 5962-9073703MPA technical specifications, attributes, parameters and parts with similar specifications to MAXIM 5962-9073703MPA.

Type
Parameter

Factory Lead Time
25 Weeks

Mounting Type
Through Hole

Package / Case
8-CDIP (0.300, 7.62mm)

Surface Mount
NO

Number of Pins
8

Operating Temperature
-55°C~125°C TA

Packaging
Tube

Published
2000

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Resistance
35Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Multiplexer or Switches

Max Power Dissipation
640mW

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Pin Count
8

Operating Supply Voltage
18V

Number of Channels
1

Number of Circuits
1

Max Supply Voltage
30V

Min Supply Voltage
10V

Analog IC - Other Type
SPST

Max Supply Current
1?A

Voltage - Supply, Single/Dual (±)
10V~30V ±4.5V~20V

Neg Supply Voltage-Nom (Vsup)
-15V

Max Dual Supply Voltage
20V

On-State Resistance (Max)
30Ohm

Min Dual Supply Voltage
4.5V

Multiplexer/Demultiplexer Circuit
2:1

Current - Leakage (IS(off)) (Max)
250pA

Channel Capacitance (CS(off), CD(off))
8pF 8pF

Switch Circuit
SPDT

Switch Time (Ton, Toff) (Max)
175ns, 145ns

Charge Injection
3pC

Channel-to-Channel Matching (?Ron)
3 ? (Max)

Crosstalk
-85dB @ 1MHz

Switching
BREAK-BEFORE-MAKE

Radiation Hardening
No

Download datasheets and manufacturer documentation for MAXIM 5962-9073703MPA.

Datasheets:

maximintegrated-dg417ak883b-datasheets-3702.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

5962-9073703MPA Overview

The electronic part can be shipped overseas conveniently because it is packaged in 8-CDIP (0.300, 7.62mm). In order to provide high reliability, an advanced packaging method Tube is used. There is an analog multiplexer mounted in position Through Hole. There is 2:1 ratio between the number of multiplexers and demultiplexers. Around -55°C~125°C TA is the extended operating temperature. In total, there are 8 terminations. This electronic part offers high-quality output due to its 1 channels. In the case of a voltage supply of 15V volts, the electrical part can be powered up and run. There are 8 pins injected into the electronic part body. The analog switch ics are built using SPDT switching circuits. A total of 1 circuits make up this switch device. It has an internal resistance of 35Ohm. The functions of 8 pins can be found in the datasheets. There is a standard Multiplexer or Switches analogue multiplexer here. In normalcircumstances, users should not exceed 30V volts for the multiplexer. 10V is the lowest voltage that should be fed to the electronic electronic part. A digital multiplexer may suffer damage if voltage is applied above 1?A. There's no problem with dual supply voltage for this switch device. However, it shouldn't exceed 20V. In the case of dual power supplies, you should connect at least 4.5V. There is an integrated analog IC SPST in the module. There is a voltage range of 18V operating voltages for the electrical part.

5962-9073703MPA Features

1 Channels
Switch Circuit: SPDT

5962-9073703MPA Applications

There are a lot of Maxim Integrated
5962-9073703MPA Analog Switches & Multiplexers ICs applications.

Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
