ADI 5962-89805012A

Manufacturer No:

5962-89805012A

Manufacturer:

ADI

Package:

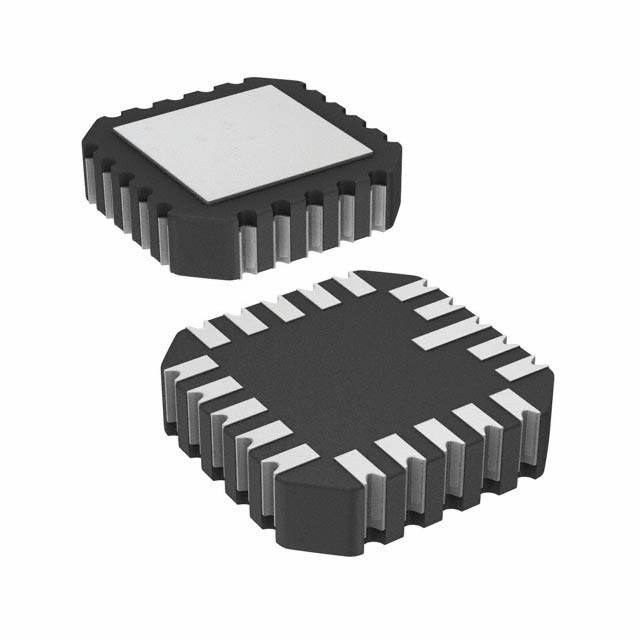

20-CLCC

Description:

Gold 20 RMS to DC Converters 20-CLCC 1.27mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5962-89805012A information

ADI 5962-89805012A technical specifications, attributes, parameters and parts with similar specifications to ADI 5962-89805012A.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
12 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-CLCC

Number of Pins
20

Packaging
Tube

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Analog Special Function Converters

Technology
BIPOLAR

Voltage - Supply
5V~36V ±3V~18V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Supply Voltage
15V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Base Part Number
AD536A

Pin Count
20

Qualification Status
Qualified

Power Supplies
5/36/+-3/+-18V

Temperature Grade
MILITARY

Current - Supply
1.2mA

Converter Type
RMS TO DC CONVERTER

Screening Level
MIL-STD-883

Positive Input Voltage-Max
7V

Total Error-Max
0.5%

Length
8.89mm

Height Seated (Max)
2.54mm

Width
8.89mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI 5962-89805012A.

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

5962-89805012A Overview

RMS to DC converter has a mounting type of Surface Mount.The device should operate on a voltage supply of 5V~36V ±3V~18V.The product has been packaged according to Tube.Packaging is in the form of a 20-CLCC unit.There are a total of 20 pins on this device.Components are powered by 15V volts at all times.A termination of 20 has been used in its construction.One of the best features of the device is that it has a number of AD536A.There is a way in which it can be considered a subclass of Analog Special Function Converters.Operation should be carried out at a temperature greater than 0°C.At this time, the maximum operational temperature is 70°C.The pin number of the component remains 20.Mount "Surface Mount" includes it.Supplies for the device are indicated by 5/36/+-3/+-18V.The current supply of 1.2mA is sufficient.

5962-89805012A Features

Supply voltage of 5V~36V ±3V~18V
20 pins
AD536A best part number

5962-89805012A Applications

There are a lot of Analog Devices Inc.
5962-89805012A applications of RMS to DC converters.

Digital Multimeters
Battery-Powered Instruments
Panel Meters
Process Control
True RMS Digital Multimeters and Panel Meters
True RMS AC + DC Measurements
