TE Connectivity 5747844-3
Manufacturer No:
5747844-3
Manufacturer:
Package:
Description:

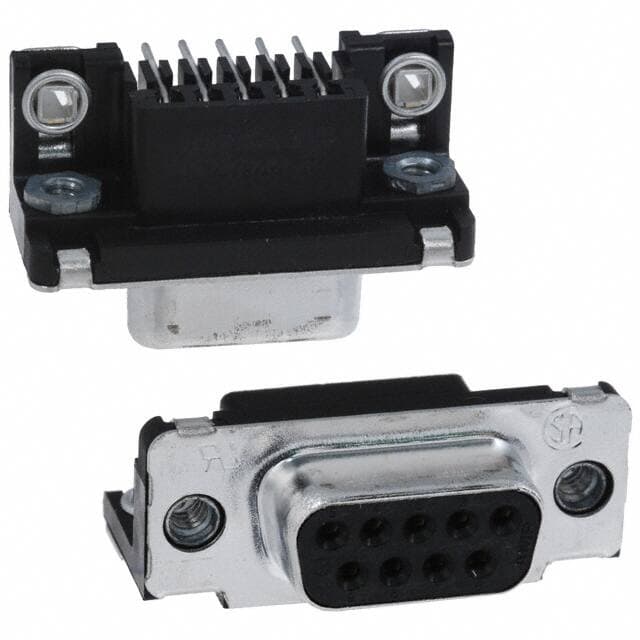

AMPLIMITE HD-20 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder 1 DE E Through Hole, Right Angle Phosphor Bronze Gold Steel, Tin Plated
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 1.490000 | $ 1.490000 |
| 10 | $ 1.230000 | $ 12.300000 |
| 100 | $ 1.165000 | $ 116.500000 |
| 260 | $ 1.150000 | $ 299.000000 |
| 520 | $ 1.095000 | $ 569.400000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
5747844-3 information
TE Connectivity 5747844-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5747844-3.
| Type | Parameter |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Factory Lead Time | 4 Weeks |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Mount | Through Hole |
| Mounting Type | Through Hole, Right Angle |
| Contact Shape | Round |
| Insulation Material | POLYETHYLENE |
| Shell Material | Steel |
| Dielectric Material | Thermoplastic |
| Body Material | Metal |
| Shell Material, Finish | Steel, Tin Plated |
| PCB Mounting Orientation | Right Angle |
| Operating Temperature | -55°C~105°C |
| Packaging | Tray |
| Series | AMPLIMITE HD-20 |
| Published | 2005 |
| Feature | Board Lock, Ground Strap |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Solder |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Type | Parameter |
|---|---|
| Number of Rows | 2 |
| Gender | Receptacle |
| Voltage - Rated | 125V |
| Subcategory | D Type Connectors |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Contact Type | Signal |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Pitch | 2.7432mm |
| Total Number of Contacts | 9 |
| Orientation | Right Angle |
| Depth | 18.79mm |
| Current Rating | 6A |
| Shell Finish | TIN |
| Reference Standard | UL, CSA |
| Contact Finish | Gold |
| Reliability | COMMERCIAL |
| Approval Agency | CSA, UL |
| Number Of PCB Rows | 2 |
| PCB Contact Pattern | STAGGERED |
