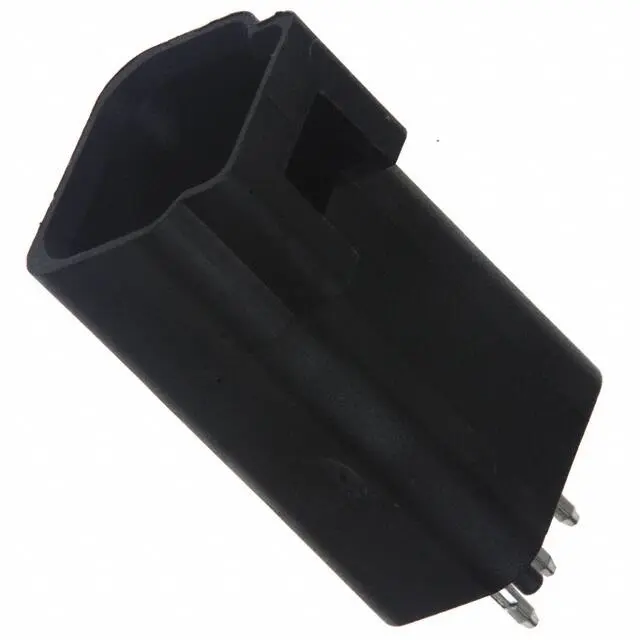

566-003-420-301 information

EDAC Inc. 566-003-420-301 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. 566-003-420-301.

  • Type
  • Parameter
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • 566
  • Published
  • 2004
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Plug
  • Number of Positions
  • 3
  • Applications
  • Automotive, General Purpose
  • Number of Rows
  • 1
  • Voltage - Rated
  • 250V
  • Fastening Type
  • Latch Holder
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 2A
  • Ingress Protection
  • IP67 - Dust Tight, Waterproof
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.079 2.00mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for EDAC Inc. 566-003-420-301.

Datasheets:

Environmental Information:

566-003-420-301 Overview


The product is packaged in Plug.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 566 Series.The device could be used for the following application: Automotive, General Purpose.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.

566-003-420-301 Features


566 series


566-003-420-301 Applications


There are a lot of EDAC Inc.
566-003-420-301 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
