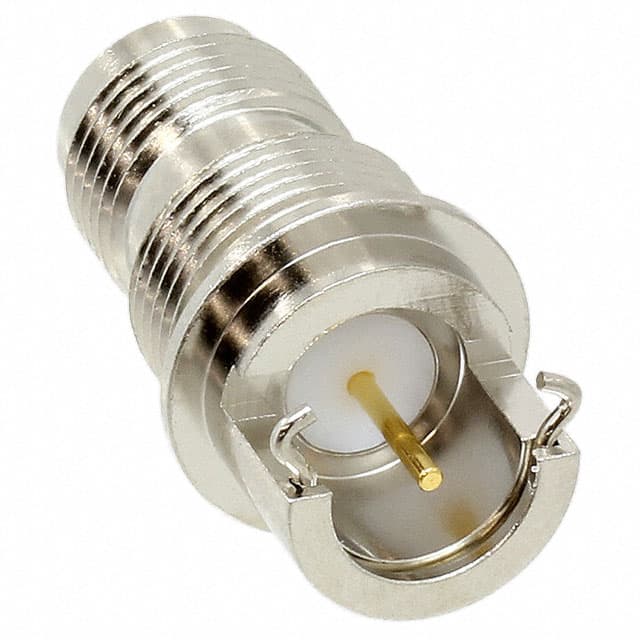

Winchester 561V504EFT

Manufacturer No:

561V504EFT

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded 50Ohm Bulk TNC Solder 1 Port Polytetrafluoroethylene (PTFE) -55°C~200°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

561V504EFT information

Winchester 561V504EFT technical specifications, attributes, parameters and parts with similar specifications to Winchester 561V504EFT.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Board Edge, End Launch; Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Phosphor Bronze

Operating Temperature
-55°C~200°C

Packaging
Bulk

Series
V-Bite®

Published
2013

Feature
Flange

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Threaded

Ingress Protection
Weatherproof

Housing Color
Silver

Impedance
50Ohm

Connector Style
TNC

Number of Ports
1

Frequency (Max)
18GHz

Mating Cycles
500

Insertion Loss
0.2dB

Body Finish
Nickel

Shield Termination
Solder

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 561V504EFT.

Datasheets:

winchesterinterconnect-861v509er6-datasheets-7079.pdf

561V504EFT Overview

This product is packaged in a Jack, Female Socket box.There is a Board Edge, End Launch; Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number V-Bite® belongs to the V-Bite® Series.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Flange feature.This device operates at a temperature of -55°C~200°C.

561V504EFT Features

V-Bite® series

561V504EFT Applications

There are a lot of Winchester Interconnect
561V504EFT Coaxial Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
