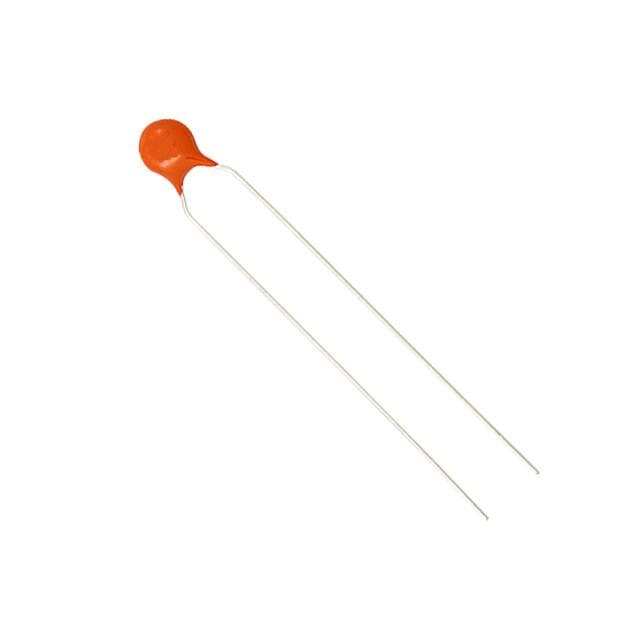

VISHAY 561R10TCCV50

Manufacturer No:

561R10TCCV50

Manufacturer:

VISHAY

Package:

, 2516

Description:

CAPACITOR, CERAMIC, 1000 V, C0G, 0.000005 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

561R10TCCV50 information

VISHAY 561R10TCCV50 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 561R10TCCV50.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
, 2516

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8532.23.00.60

Samacsys Manufacturer
Vishay

Additional Feature
FLAME PROOF

Capacitance
0.000005 µF

Capacitor Type
CERAMIC CAPACITOR

Dielectric Material
CERAMIC

Height
7.5 mm

JESD-609 Code
e3

Length
6.4 mm

Mounting Feature
THROUGH HOLE MOUNT

Multilayer
No

Negative Tolerance
10%

Number of Terminals
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-55 °C

Package Shape
DISK PACKAGE

Package Style
Radial

Rated (DC) Voltage (URdc)
1000 V

Surface Mount
NO

Temperature Characteristics Code
C0G

Temperature Coefficient
30ppm/Cel ppm/°C

Terminal Finish
Matte Tin (Sn) - with Nickel (Ni) barrier

Terminal Pitch
6.4 mm

Terminal Shape
WIRE

Width
4 mm

Download datasheets and manufacturer documentation for VISHAY 561R10TCCV50.

Datasheets:

vishayceramite-561r10tccv50-datasheets-3424.pdf

vishayspecialtycapacitors-561r10tccv50-datasheets-5965.pdf

561R10TCCV50 Overview

A program's size/dimension is 0.252Dia 6.40mm for this device.Its coefficient is C0G NP0 and determines the change in resistance per degree of temperature for a substance.With the voltage 1kV, it is capable of operating.Lead pitch of a capacitor is simply the distance (spacing) between adjacent threads, and its pitch is 6.4mm.

561R10TCCV50 Features

a size/dimension of 0.252Dia 6.40mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 1kV

561R10TCCV50 Applications

There are a lot of Vishay Cera-Mite
561R10TCCV50 applications of ceramic capacitors.

General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
