TE Connectivity 5569564-1

Manufacturer No:

5569564-1

Manufacturer:

TE Connectivity

Package:

Description:

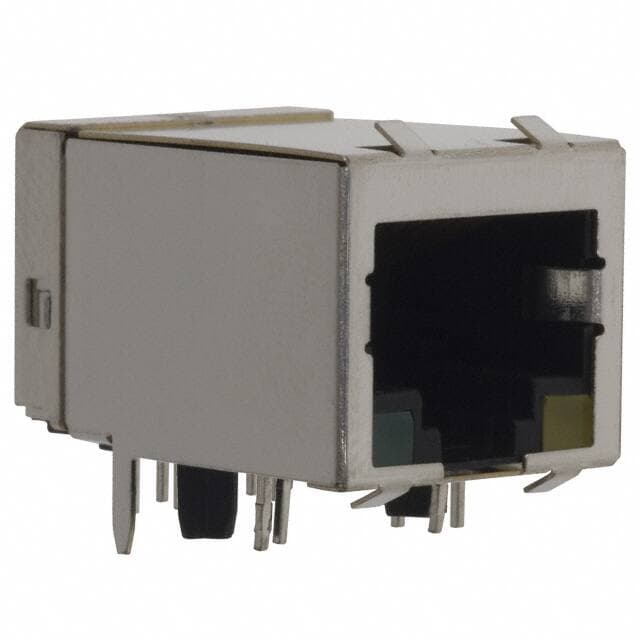

Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5569564-1 information

TE Connectivity 5569564-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5569564-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
5 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Shell Material
COPPER ALLOY

Housing Material
Polybutylene Terephthalate (PBT)

PCB Mounting Orientation
Right Angle

Operating Temperature
-40°C~85°C

Packaging
Tray

Published
2009

JESD-609 Code
e3

Feature
Board Guide

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Jack

Number of Positions
8

Color
Black

Voltage - Rated
150V

Subcategory
Telecom and Datacom Connectors

MIL Conformance
NO

IEC Conformance
NO

Option
GENERAL PURPOSE

Pitch
2.54mm

Total Number of Contacts
8

Orientation
90° Angle (Right)

Shielding
Shielded, EMI Finger

Depth
21.34mm

Current Rating
1.5A

Shell Finish
TIN OVER NICKEL

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Approval Agency
CSA, UL

PCB Contact Pattern
STAGGERED

Body Breadth
0.537 inch

Contact Gender
Female

Contact Style
TELCOM, MODULAR

Contact Resistance
30mOhm

Insulation Resistance
500000000Ohm

ELV
Compliant

Max Voltage Rating (AC)
150V

Element Configuration
Single

Number of Ports
1

Download datasheets and manufacturer documentation for TE Connectivity 5569564-1.

5569564-1 Overview

This product is packaged in a Jack box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~85°C.
