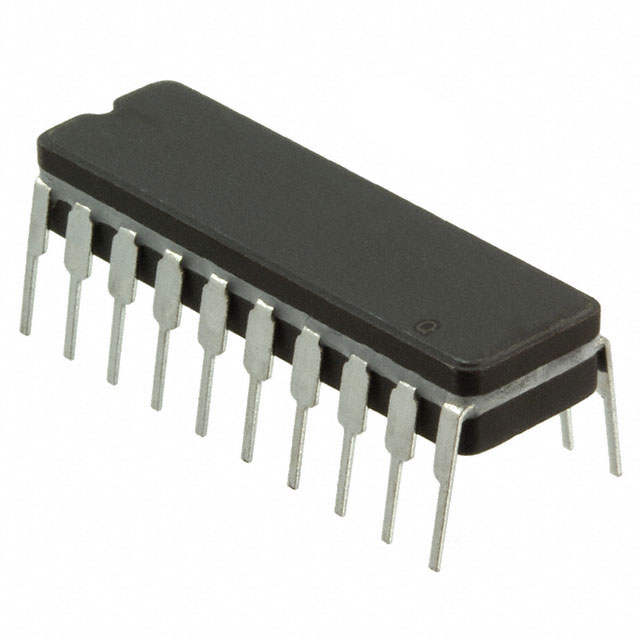

Renesas 54FCT574TDB
Renesas 54FCT574TDB

Renesas 54FCT574TDB

Manufacturer No:

54FCT574TDB

Manufacturer:

Renesas

Package:

CDIP

Description:

8 Bit Flip Flop DUAL 20 Pins CDIP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT574TDB information

Renesas 54FCT574TDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT574TDB.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Plating
  • Lead, Tin
  • Mount
  • Through Hole
  • Package / Case
  • CDIP
  • Number of Pins
  • 20
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn63Pb37)
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • BROADSIDE VERSION OF 374
  • Subcategory
  • FF/Latches
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Reach Compliance Code
  • not_compliant
  • Pin Count
  • 20
  • Qualification Status
  • Not Qualified
  • Operating Supply Voltage
  • 5V
  • Polarity
  • Non-Inverting
  • Power Supplies
  • 5V
  • Temperature Grade
  • MILITARY
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 4.5V
  • Load Capacitance
  • 50pF
  • Number of Ports
  • 2
  • Number of Bits
  • 8
  • Propagation Delay
  • 14 ns
  • Quiescent Current
  • 10?A
  • Turn On Delay Time
  • 11 ns
  • Family
  • FCT
  • Logic Function
  • D-Type
  • Output Characteristics
  • 3-STATE
  • Logic IC Type
  • BUS DRIVER
  • Max I(ol)
  • 0.032 A
  • High Level Output Current
  • -12mA
  • Low Level Output Current
  • 32mA
  • Independent Circuits
  • 1
  • Clock Edge Trigger Type
  • Positive Edge

Download datasheets and manufacturer documentation for Renesas 54FCT574TDB.

54FCT574TDB Overview


The flip flop is packaged in CDIP. Currently, there are 20 terminations. The D flip flop is powered by a voltage of 5V . Devices in the FCTfamily are electronic devices. A part of the electronic system is mounted in the way of Through Hole. This board is designed with 20pins on it. This device has Positive Edgeas its clock edge trigger type. There is a base part number FF/Latchesfor the RS flip flops. An electronic part designed with 8bits is used in this application. It runs on 5Vvolts of power. A D flip flop with 2embedded ports is available. If high efficiency is desired, the supply voltage should be kept at 5V. In terms of quiescent current, it consumes 10?A . Additionally, you may refer to the D latch's additional BROADSIDE VERSION OF 374. -12mA is set as the high level output current. In the low level output current setting, 32mAis used. It is recommended that the operating temperature be below 125°C. Ideally, the operating temperature should be higher than -55°C. A minimum supply voltage of 4.5V is required for these RS flip flops to operate. In this case, it supports a maximum supply voltage of 5.5V. It uses a logic IC with a BUS DRIVER value. A total of 1 functions are available on the T flip flop. There are 20 pins on the D latch.

54FCT574TDB Features


20 pins
8 Bits
5V power supplies
1 Functions
20 pin count


54FCT574TDB Applications


There are a lot of Integrated Device Technology (IDT)
54FCT574TDB Flip Flops applications.


  • Bounce elimination switch
  • Data storage
  • Data transfer
  • Latch
  • Registers
  • Memory
  • Frequency division
  • Memory
  • Event Detectors
  • Data Synchronizers
