Renesas 54FCT574ATDB
Renesas 54FCT574ATDB

Renesas 54FCT574ATDB

Manufacturer No:

54FCT574ATDB

Manufacturer:

Renesas

Package:

CDIP

Description:

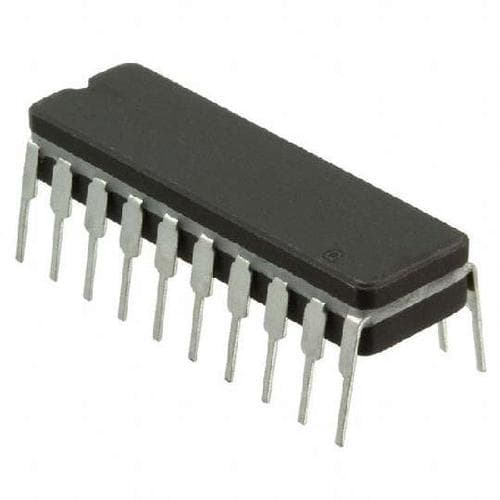

8 Bit Flip Flop DUAL 20 Pins CDIP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT574ATDB information

Renesas 54FCT574ATDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT574ATDB.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Plating
  • Lead, Tin
  • Mount
  • Through Hole
  • Package / Case
  • CDIP
  • Number of Pins
  • 20
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn63Pb37)
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • BROADSIDE VERSION OF 374
  • Subcategory
  • FF/Latches
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Qualification Status
  • Not Qualified
  • Polarity
  • Non-Inverting
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 5V
  • Temperature Grade
  • MILITARY
  • Min Supply Voltage
  • 4.5V
  • Load Capacitance
  • 50pF
  • Number of Ports
  • 2
  • Number of Bits
  • 8
  • Quiescent Current
  • 10?A
  • Turn On Delay Time
  • 7.2 ns
  • Family
  • FCT
  • Logic Function
  • D-Type
  • Output Characteristics
  • 3-STATE
  • Logic IC Type
  • BUS DRIVER
  • Max I(ol)
  • 0.032 A
  • Screening Level
  • MIL-STD-883 Class B
  • Trigger Type
  • POSITIVE EDGE
  • High Level Output Current
  • -12mA
  • Independent Circuits
  • 1
  • Height
  • 2.9mm
  • Length
  • 25.4mm
  • Width
  • 7.62mm

Download datasheets and manufacturer documentation for Renesas 54FCT574ATDB.

Datasheets:

54FCT574ATDB Overview


It is embeded in CDIP case. The trigger configured with it uses POSITIVE EDGE. There have been 20 terminations. A voltage of 5V is used as the power supply for this D latch. The electronic device belongs to the FCTfamily. Through Hole mounts this electronic component. This board has 20 pins. This RS flip flops is a part number FF/Latches. There are 8bits in this flip flop. It reaches the maximum supply voltage (Vsup) at 5.5V. The power supply is 5V. This D flip flop is equipped with 0 ports. It consumes a total of 10?A quiescent current at any given time. In addition, you can refer to the additinal BROADSIDE VERSION OF 374 of the D latch. -12mAis the output current at high level. Operating temperatures should be lower than 125°C. It is recommended that the operating temperature is higher than -55°C. The system operates with a minimum supply voltage of 4.5V. It uses BUS DRIVERas its logic IC. Currently, it is equipped with 1 functions . It has 20 pins.
