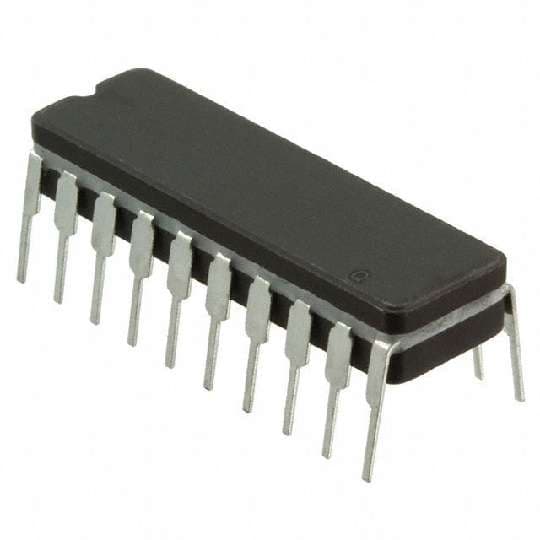

Renesas 54FCT373CTDB

Manufacturer No:

54FCT373CTDB

Manufacturer:

Renesas

Package:

CDIP

Description:

Latch 8 Bits Latches 20 Pins DUAL CMOS CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT373CTDB information

Renesas 54FCT373CTDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT373CTDB.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
CDIP

Number of Pins
20

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Additional Feature
POWER OFF DISABLE OUTPUTS

Packing Method
TUBE

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Pin Count
20

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
MILITARY

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Load Capacitance
50pF

Number of Ports
2

Number of Bits
8

Propagation Delay
8 ns

Turn On Delay Time
8 ns

Family
FCT

Logic Function
Latch

Output Characteristics
3-STATE

Logic IC Type
BUS DRIVER

Max I(ol)
0.032 A

High Level Output Current
-12mA

Low Level Output Current
32mA

Independent Circuits
1

Length
25.4mm

Width
7.62mm

Download datasheets and manufacturer documentation for Renesas 54FCT373CTDB.

Datasheets:

integrateddevicetechnology-54fct373ctdb-datasheets-7987.pdf

54FCT373CTDB Overview

In the CDIP package, it can be found as an embedded module. The design of this electronic part contains 8 bits. This device has been designed with 20 terminations available. The device works with a voltage of 5V for its supply voltage. There are 20 pins attached to it. It is a member of the FCT family of electronic devices. This board has 20 pins on it, which is what it is designed for. Electronic parts are mounted using the Through Hole method. This device has 2 ports on board, which are all available at the same time. There is 5V power supply for it. Based on its reliable performance, this device is appropriate for TUBE. If you want to achieve high efficiency, make sure the supply voltage is at 5V. It also has characteristics of POWER OFF DISABLE OUTPUTS. 32mA is set as the low level output current. -12mA is set as the high level output current. It is recommended to work at a temperature lower than 125°C. In order for the system to operate properly, the operating temperature should be higher than -55°C. It is capable of providing a maximum supply voltage of 5.5V. In order for the machine to operate, the supply voltage must be 4.5V. A logic IC that is used in this application is BUS DRIVER.

54FCT373CTDB Features

CDIP package
8 Bits
20 pin count
20 pins
5V power supplies

54FCT373CTDB Applications

There are a lot of Integrated Device Technology (IDT)
54FCT373CTDB Latches applications.

Digital bus buffer
Flip-flops
Parallel data synchronization
Parallel data storage
Shift register
Pattern generators
Automotive Infotainment
Automotive Cluster
Automotive ADAS
Automotive Body Electronics
