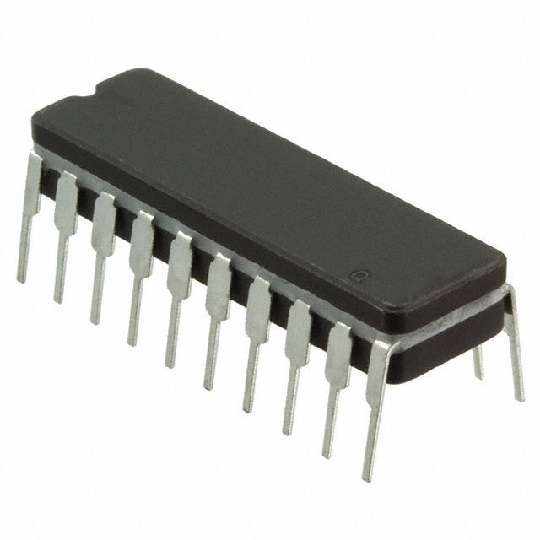

Renesas 54FCT245CTDB

Manufacturer No:

54FCT245CTDB

Manufacturer:

Renesas

Package:

CDIP

Description:

DUAL Buffers 20 Pins 8 Bit per Element CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT245CTDB information

Renesas 54FCT245CTDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT245CTDB.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
CDIP

Number of Pins
20

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Additional Feature
WITH DIRECTION CONTROL

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Pin Count
20

Number of Elements
1

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
MILITARY

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
2

Propagation Delay
6.2 ns

Quiescent Current
10?A

Turn On Delay Time
6.2 ns

Family
FCT

Logic Function
Inverting, Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Logic IC Type
BUS TRANSCEIVER

Number of Bits per Element
8

Prop. Delay@Nom-Sup
4.5 ns

High Level Output Current
48mA

Low Level Output Current
12mA

Control Type
COMMON CONTROL

Translation
N/A

Length
25.4mm

Width
7.62mm
