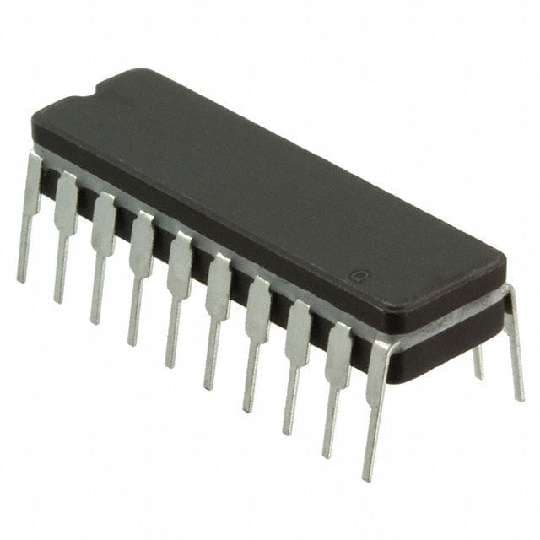

Renesas 54FCT240TDB

Manufacturer No:

54FCT240TDB

Manufacturer:

Renesas

Package:

CDIP

Description:

DUAL Buffers 20 Pins 4 Bit per Element CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT240TDB information

Renesas 54FCT240TDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT240TDB.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
CDIP

Number of Pins
20

Published
2002

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
5V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Elements
2

Polarity
Inverting

Power Supplies
5V

Temperature Grade
MILITARY

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Load Capacitance
50pF

Number of Ports
2

Propagation Delay
10.5 ns

Quiescent Current
1?A

Family
FCT

Logic Function
Buffer, Inverting

Output Characteristics
3-STATE

Logic IC Type
BUS DRIVER

Number of Bits per Element
4

Prop. Delay@Nom-Sup
9 ns

High Level Output Current
-12mA

Low Level Output Current
12mA

Control Type
ENABLE LOW

Length
25.4mm

Width
7.62mm

Download datasheets and manufacturer documentation for Renesas 54FCT240TDB.

Datasheets:

integrateddevicetechnology-54fct240tdb-datasheets-4005.pdf

54FCT240TDB Overview

An interesting CDIP package is used. The 2 elements all play a role. Logic device with 20 different terminations. There is a requirement for 5V of supply voltage. This electronic part belongs to the FCT family of parts. This electric component comes with 20 pins. Through Hole applications can be used with digital buffer. A 20-pin connector is used. An enhanced bus transceiver with 2 ports is available. Each element employs 4 bits. An example of a Bus Driver/Transceivers type is this. It uses 1?A when quiescent. An electrical supply with 5V is recommended. Using 5V supply voltage on this electronic part is recommended for running the part safely and stably in a circuit. As low as -55°C is not a problem for it to operate. An ambient temperature of no more than 125°C should be used. The low-level output mode outputs 12mA. It is possible that the electronic part may conduct -12mA current in high-level output mode. It is strongly recommended that you use at least a voltage of 4.5V when operating this buffer. There is a maximum supply voltage rating of 5.5V. The BUS DRIVER logic bus transceiver is known as such. The amount of data required to make 8 outputs is sufficient. Voltage buffers using ENABLE LOW control start up automatically.
