Rosenberger 53K517-271N5

Manufacturer No:

53K517-271N5

Manufacturer:

Rosenberger

Package:

Description:

Jack, Female Socket Threaded 50Ohm Bulk N Type Solder 1 Port Polytetrafluoroethylene (PTFE) -25°C~110°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

53K517-271N5 information

Rosenberger 53K517-271N5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 53K517-271N5.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Insulation Material
POLYTETRAFLUORO ETHYLENE

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Bronze

Panel Mount
YES

Operating Temperature
-25°C~110°C

Packaging
Bulk

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Additional Feature
APPLICABLE CABLE: RG 405, INSERTION LOSS AND VSWR MAX AT: 8 GHZ

Fastening Type
Threaded

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Housing Color
Silver

Impedance
50Ohm

Connector Style
N Type

Number of Ports
1

Frequency (Max)
11GHz

Mating Cycles
500

Contact Termination
Solder

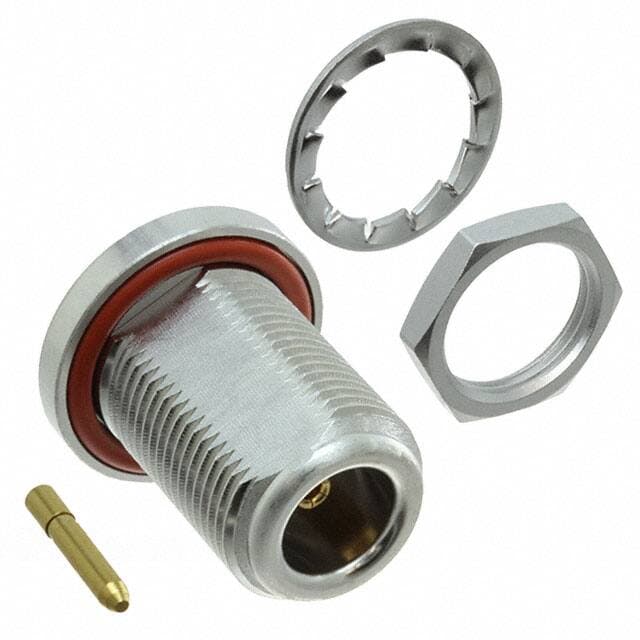

Includes
4 pcs - 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut

Insertion Loss
0.05dB

Body Finish
White Bronze

Cable Group
RG-405 (.085 Semi Rigid)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rosenberger 53K517-271N5.

Datasheets:

rosenberger-53k517271n5-datasheets-2011.pdf

53K517-271N5 Overview

This product is packaged in a Jack, Female Socket box.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Further, there are features such as APPLICABLE CABLE: RG 405, INSERTION LOSS AND VSWR MAX AT: 8 GHZ, to name only a few.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -25°C~110°C.

53K517-271N5 Features

53K517-271N5 Applications

There are a lot of Rosenberger
53K517-271N5 Coaxial Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
