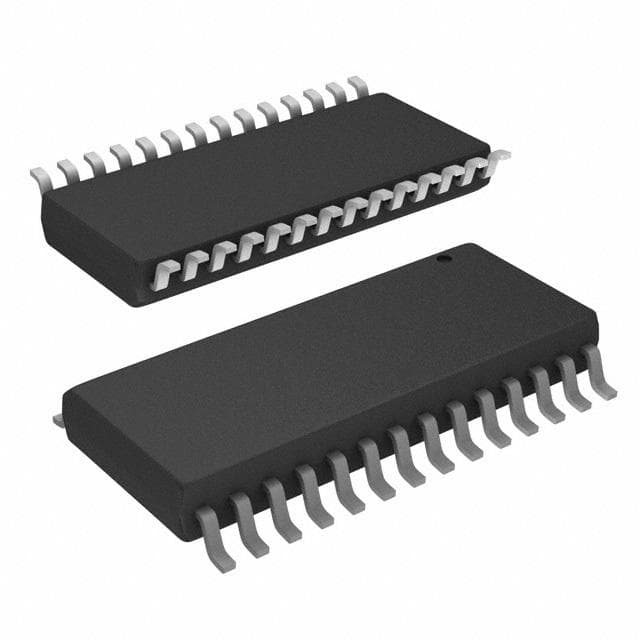

Renesas 525R-11LFT
Renesas 525R-11LFT

Renesas 525R-11LFT

Manufacturer No:

525R-11LFT

Manufacturer:

Renesas

Package:

QSOP

Description:

5V 40MHz Clock Generators 28 Pins QSOP 28 Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

525R-11LFT information

Renesas 525R-11LFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 525R-11LFT.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • QSOP
  • Number of Pins
  • 28
  • Published
  • 1999
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.635mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 28
  • Qualification Status
  • Not Qualified
  • Operating Supply Voltage
  • 3.3V
  • Power Supplies
  • 3.3/5V
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 3V
  • Nominal Supply Current
  • 6mA
  • Frequency (Max)
  • 40MHz
  • Input
  • Clock
  • Primary Clock/Crystal Frequency-Nom
  • 50MHz
  • Length
  • 9.9mm
  • Width
  • 3.8mm
  • Thickness
  • 1.47mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas 525R-11LFT.

Datasheets:

525R-11LFT Overview


Clock PLL is embedded in the QSOP package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 28 terminations can be found in frequency generators. The supply voltage of 5V allows for high efficiency. Clock is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 40MHz is the maximal value for normal operation. Clock PLL is equipped with 28 pin count. Clock generator is designed with 28 pins. The operating temperature should be higher than 0°C. The operating temperature should be lower than 70°C. The supply voltage should be maintained at 3.3V for high efficiency. Clock generator operates with the maximal supply voltage of 5.5V. Clock PLL operates with the minimal supply voltage of 3V.

525R-11LFT Features


Available in the QSOP
Supply voltage of 5V
Operating supply voltage of 3.3V


525R-11LFT Applications


There are a lot of Integrated Device Technology (IDT)
525R-11LFT Clock Generators applications.


  • Wireless infrastructure
  • Instrument
  • Automatic test equipment
  • Wide area power system
  • Digital circuits
  • Wireless base station for LTE, LTE-advanced
  • Picocells, femtocells and small cells
  • Sampling clocks for ADC and DAC
  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
