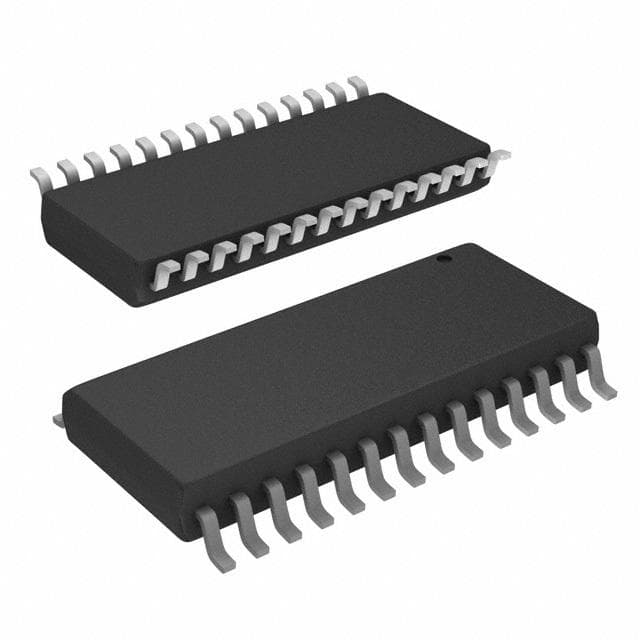

Renesas 525R-02LFT

Manufacturer No:

525R-02LFT

Manufacturer:

Renesas

Package:

SSOP

Description:

3.3V 250MHz Clock Generators 28 Pins SSOP 28 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

525R-02LFT information

Renesas 525R-02LFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 525R-02LFT.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
28

Packaging
Tape and Reel

Published
1999

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

Qualification Status
Not Qualified

Power Supplies
3.3/5V

Temperature Grade
COMMERCIAL

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
3V

Nominal Supply Current
8mA

Frequency (Max)
250MHz

Input
Clock

Primary Clock/Crystal Frequency-Nom
50MHz

Length
9.9mm

Width
3.8mm

Thickness
1.47mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 525R-02LFT.

Datasheets:

integrateddevicetechnology-525r02lft-datasheets-9613.pdf

integrateddevicetechnology-525r02lft-datasheets-6218.pdf

525R-02LFT Overview

Clock generator is packaged in the way of Tape and Reel. Clock PLL is embedded in the SSOP package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 28 terminations can be found in frequency generators. The supply voltage of 3.3V allows for high efficiency. Clock is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 250MHz is the maximal value for normal operation. Clock PLL is equipped with 28 pin count. Clock generator is designed with 28 pins. The operating temperature should be higher than 0°C. The operating temperature should be lower than 70°C. The supply voltage should be maintained at 3.3V for high efficiency. Clock generator operates with the maximal supply voltage of 5.5V. Clock PLL operates with the minimal supply voltage of 3V.

525R-02LFT Features

Available in the SSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V

525R-02LFT Applications

There are a lot of Integrated Device Technology (IDT)
525R-02LFT Clock Generators applications.

Wireless infrastructure
Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
