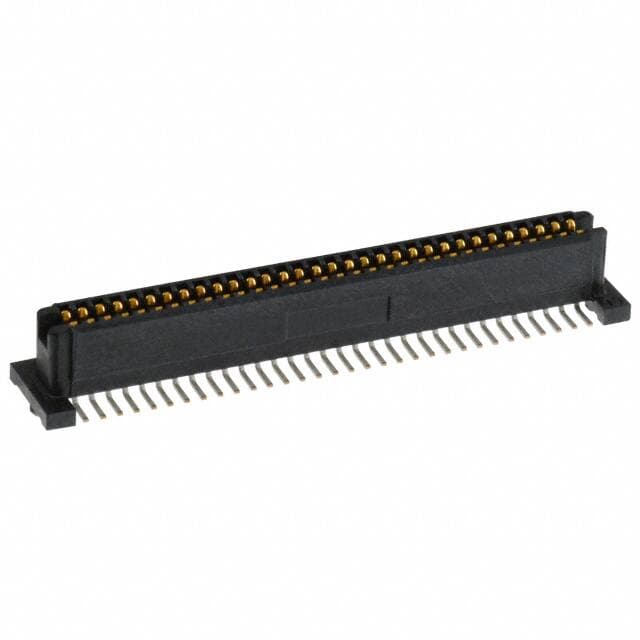

TE Connectivity 5120521-1
Manufacturer No:
5120521-1
Manufacturer:
Package:
Description:
Receptacle, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.039 1.00mm Surface Mount 64 Positions Free Height (FH) IEEE 1386, PMC Gold Copper
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 3.095000 | $ 3.095000 |
| 10 | $ 2.715000 | $ 27.150000 |
| 25 | $ 2.585000 | $ 64.625000 |
| 100 | $ 2.425000 | $ 242.500000 |
| 250 | $ 2.415000 | $ 603.750000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
5120521-1 information
TE Connectivity 5120521-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5120521-1.
| Type | Parameter |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Factory Lead Time | 14 Weeks |
| Contact Material | Copper |
| Contact Plating | Gold, Tin |
| Mounting Type | Surface Mount |
| Housing Material | Thermoplastic |
| Mounting Option 1 | LOCKING |
| Board Mounting Option | PEG |
| PCB Mount Alignment | With |
| Packaging | Tape & Reel (TR) |
| Series | Free Height (FH) IEEE 1386, PMC |
| Published | 2006 |
| JESD-609 Code | e3 |
| Feature | Board Guide |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN Code | EAR99 |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Gender | Receptacle |
| Additional Feature | TAPE & REEL PACKAGING |
| HTS Code | 8536.69.40.40 |
| Type | Parameter |
|---|---|
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Pitch | 0.039 1.00mm |
| Total Number of Contacts | 64 |
| Orientation | Vertical |
| Current Rating | 500mA |
| Number of Conductors | ONE |
| Reference Standard | UL, CSA |
| Contact Finish | Gold |
| Reliability | COMMERCIAL |
| Number Of PCB Rows | 2 |
| Lead Pitch | 1mm |
| PCB Contact Pattern | RECTANGULAR |
| Operating Temperature (Max) | 110°C |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Operating Temperature (Min) | -55°C |
| Housing Color | Black |
| Operating Supply Voltage | 250V |
| Rated Current (Signal) | 0.8A |
