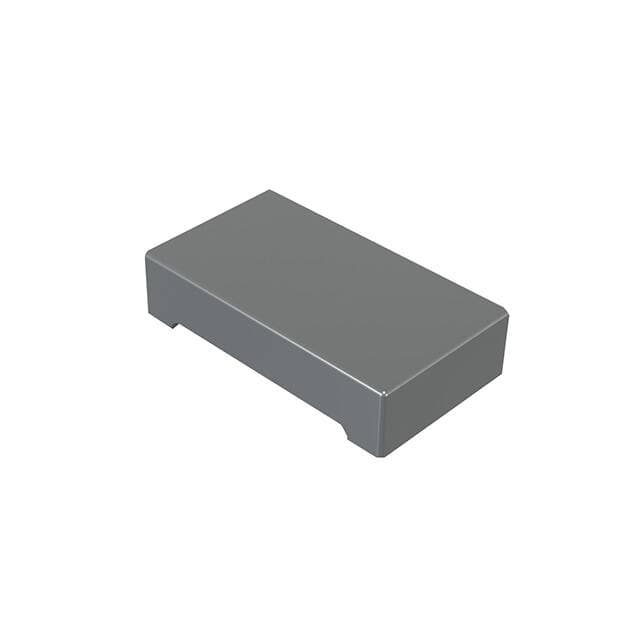

KEYSTONE 5108
Manufacturer No:
5108
Manufacturer:
Package:
1206 (3216 Metric)
Description:
Metal Element, 0Ohm, 0.5W 1/2W, Jumper,
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
5108 information
KEYSTONE 5108 technical specifications, attributes, parameters and parts with similar specifications to KEYSTONE 5108.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Package / Case
- 1206 (3216 Metric)
- Packaging
- Cut Tape (CT)
- Size / Dimension
- 0.120Lx0.067W 3.05mmx1.70mm
- Tolerance
- Jumper
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Resistance
- 0Ohm
- Composition
- Metal Element
- Power (Watts)
- 0.5W 1/2W
- Max Power Dissipation
- 500mW
- Case Code (Metric)
- 3216
- Case Code (Imperial)
- 1206
- Height
- 711.2?m
- Height Seated (Max)
- 0.028 0.71mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for KEYSTONE 5108.
Datasheets:
Environmental Information:
The Keystone Chip Resistor - Surface Mount 5108 is a 0 ohm surface mount resistor designed for use in a variety of applications. This resistor is a 1206 size, 1/2 watt jumper with a tolerance of ±5%. It is constructed from a high-grade ceramic body and has a nickel barrier finish.
Features:
? 0 ohm surface mount resistor
? 1206 size, 1/2 watt jumper
? ±5% tolerance
? High-grade ceramic body
? Nickel barrier finish
Applications:
The Keystone Chip Resistor - Surface Mount 5108 is suitable for use in a variety of applications, including power supplies, motor control, and automotive electronics. It is also suitable for use in high-temperature environments, such as in automotive and industrial applications.
