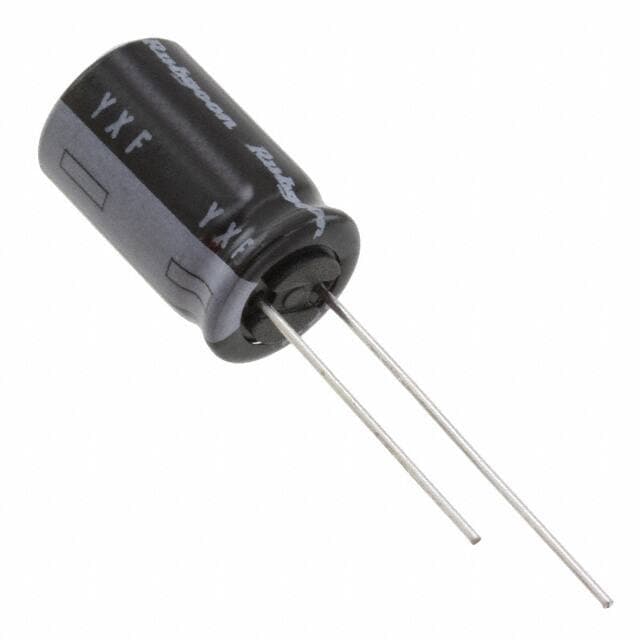

Rubycon 50YXF220MEFC10X16
Rubycon 50YXF220MEFC10X16

Rubycon 50YXF220MEFC10X16

Manufacturer No:

50YXF220MEFC10X16

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

YXF 220?F Capacitor ±20% Bulk Through Hole 539mA 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

50YXF220MEFC10X16 information

Rubycon 50YXF220MEFC10X16 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 50YXF220MEFC10X16.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • YXF
  • Published
  • 1999
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 50V
  • Voltage - Rated AC
  • 50V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Ripple Current
  • 539mA
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Impedance
  • 120mOhm
  • Ripple Current @ Low Frequency
  • 539mA @ 120Hz
  • Ripple Current @ High Frequency
  • 770mA @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 16mm
  • Height Seated (Max)
  • 0.689 17.50mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Rubycon 50YXF220MEFC10X16.

Datasheets:

50YXF220MEFC10X16 Overview


In terms of ripple current, it is 770mA @ 100kHz at full charge.When the charge is lowest, the ripple current is 539mA @ 120Hz.Sitting height (Max) should not exceed 0.689 17.50mm.Voltage - Rated DC of 50V is required to operate this capacitor.The capacitor operates at a voltage of 50V volts.It is recommended to maintain the operating temperature at -40°C~105°C in order to maximize efficiency.

50YXF220MEFC10X16 Features


the ripple current is 770mA @ 100kHz.
the ripple current is 539mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C


50YXF220MEFC10X16 Applications


There are a lot of Rubycon
50YXF220MEFC10X16 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
