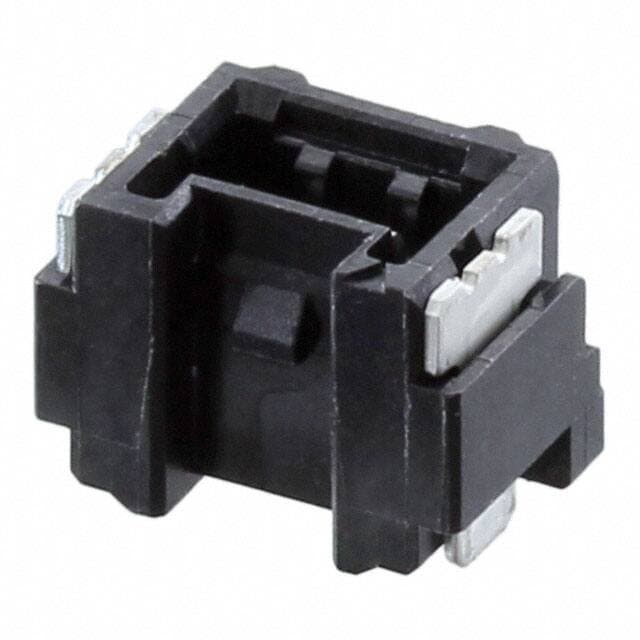

MOLEX 5055680271
Manufacturer No:
5055680271
Manufacturer:
Package:
Description:
Micro-Lock PLUS 505568 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 2-Position Board to Cable/Wire 0.165 4.20mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
5055680271 information
MOLEX 5055680271 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5055680271.
| Type | Parameter |
|---|---|
| Factory Lead Time | 14 Weeks |
| Contact Material | Brass |
| Mounting Type | Surface Mount |
| Contact Shape | Square |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C~105°C |
| Packaging | Tape & Reel (TR) |
| Series | Micro-Lock PLUS 505568 |
| Published | 2017 |
| Feature | Solder Retention |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Solder |
| ECCN Code | EAR99 |
| Connector Type | Header |
| Number of Positions | 2 |
| Applications | Automotive, General Purpose, Industrial |
| Number of Rows | 1 |
| Voltage - Rated | 50VAC/DC |
| Additional Feature | POLARIZED |
| HTS Code | 8536.69.40.30 |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| MIL Conformance | NO |
| Type | Parameter |
|---|---|
| IEC Conformance | NO |
| Filter Feature | NO |
| Contact Type | Male Pin |
| Mixed Contacts | NO |
| Current Rating (Amps) | Varies by WireGAuge |
| Total Number of Contacts | 2 |
| Insulation Height | 0.165 4.20mm |
| Style | Board to Cable/Wire |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049 1.25mm |
| Insulation Color | Black |
| Shrouding | Shrouded - 4 Wall |
| Empty Shell | NO |
| Contact Finish Thickness - Mating | 39.4μin 1.00μm |
| Contact Finish Thickness - Post | 39.4μin 1.00μm |
| Stack Height (Mating) | 7.4mm |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
