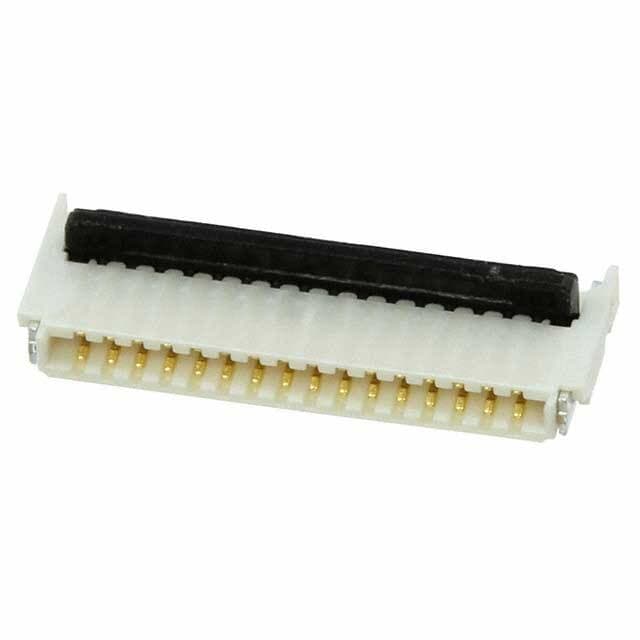

MOLEX 5034801600
MOLEX 5034801600

MOLEX 5034801600

Manufacturer No:

5034801600

Manufacturer:

MOLEX

Package:

Description:

BackFlip, Easy-On 503480 Series FFC, FPC Contacts, Top and Bottom Tape & Reel (TR) 0.020 0.50mm Solder 16 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5034801600 information

MOLEX 5034801600 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5034801600.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Mounting Option 1
  • LOCKING
  • Actuator Material
  • Polyamide (PA), Nylon, Glass Filled
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • BackFlip, Easy-On 503480
  • Published
  • 2013
  • JESD-609 Code
  • e4
  • Feature
  • Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 16
  • Number of Rows
  • 1
  • Voltage - Rated
  • 50V
  • Additional Feature
  • EASY-ON, BACKFLIP
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 16
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.382 inch
  • Number Of PCB Rows
  • 1
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.039 inch
  • Contact Gender
  • FEMALE
  • Housing Color
  • White
  • Body Depth
  • 0.142 inch
  • Contact Style
  • BELLOWED TYPE
  • Insulation Resistance
  • 50000000Ohm
  • Dielectric Withstanding Voltage
  • 200VAC V
  • Contact Pattern
  • RECTANGULAR
  • Mating Cycles
  • 10
  • Insulator Color
  • NATURAL
  • Flat Flex Type
  • FFC, FPC

Download datasheets and manufacturer documentation for MOLEX 5034801600.

Datasheets:

Environmental Information:

PCN Obsolescence/ EOL:

PCN Assembly/Origin:

PCN Other:

3D Drawings:

5034801600 Overview


This product is packaged in a FFC/FPC CONNECTOR box.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number BackFlip, Easy-On 503480 belongs to the BackFlip, Easy-On 503480 Series.Further, there are features such as EASY-ON, BACKFLIP, to name only a few.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~85°C.

5034801600 Features


BackFlip, Easy-On 503480 series


5034801600 Applications


There are a lot of Molex
5034801600 FFC, FPC (Flat Flexible) Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
