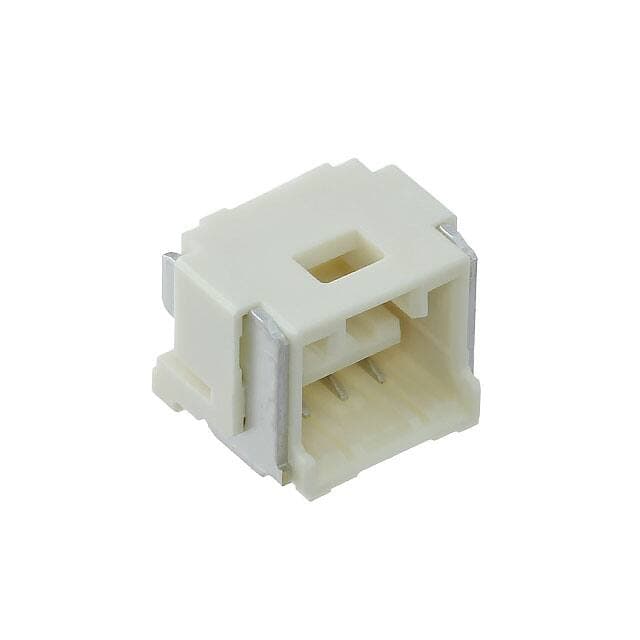

MOLEX 5025850370
MOLEX 5025850370

MOLEX 5025850370

Manufacturer No:

5025850370

Manufacturer:

MOLEX

Package:

Description:

1 Rows Receptacle Solder Copper Alloy Surface Mount, Right Angle Tape & Reel (TR) Tin Resin Forked

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5025850370 information

MOLEX 5025850370 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5025850370.

  • Type
  • Parameter
  • Factory Lead Time
  • 21 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Insulation Material
  • Resin
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • CLIK-Mate 502585
  • Published
  • 2010
  • Feature
  • Pick and Place, Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle
  • Applications
  • Automotive, General Purpose, Industrial, Lighting, Medical
  • Number of Rows
  • 1
  • Voltage - Rated
  • 100V
  • Fastening Type
  • Latch Holder
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Contact Type
  • Forked
  • Mixed Contacts
  • NO
  • Orientation
  • Right Angle
  • Depth
  • 7.3mm
  • Insulation Height
  • 0.250 6.35mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 2A
  • Pitch - Mating
  • 0.059 1.50mm
  • Number of Contacts
  • 3
  • Contact Gender
  • Female
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Contact Resistance
  • 20mOhm
  • Glow Wire Compliant
  • Non-compliant
  • Height
  • 6.55mm
  • Length
  • 8.8mm
  • Contact Finish Thickness - Mating
  • 39.4?in 1.00?m
  • Contact Finish Thickness - Post
  • 39.4?in 1.00?m
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for MOLEX 5025850370.

Datasheets:

Environmental Information:

3D Drawings:

RohsStatement:

TechnicalDrawing:

5025850370 Overview


Packaging for this item is Receptacle.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the CLIK-Mate 502585 Series.A possible application for the device is Automotive, General Purpose, Industrial, Lighting, Medical.In many ways, its Pick and Place, Solder Retention feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.

5025850370 Features


CLIK-Mate 502585 series


5025850370 Applications


There are a lot of Molex
5025850370 Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
