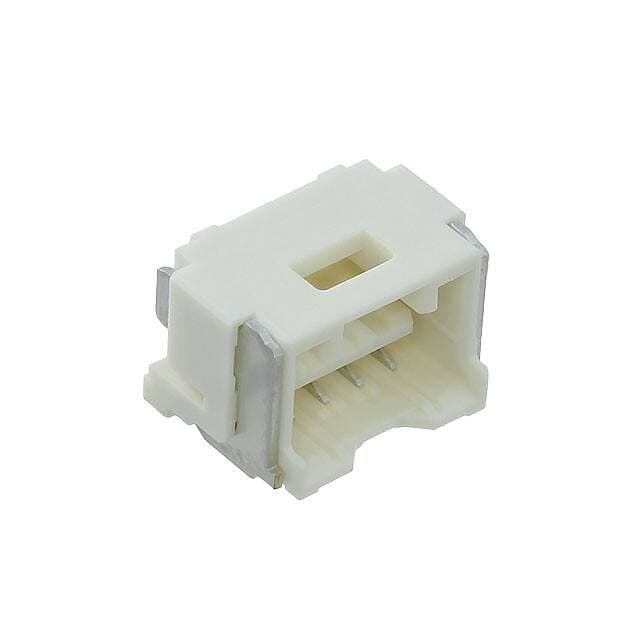

MOLEX 5025840460
MOLEX 5025840460

MOLEX 5025840460

Manufacturer No:

5025840460

Manufacturer:

MOLEX

Package:

Description:

1 Rows Receptacle Solder Copper Alloy Surface Mount Tape & Reel (TR) Tin Resin Forked

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5025840460 information

MOLEX 5025840460 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5025840460.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Insulation Material
  • Resin
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • CLIK-Mate 502584
  • Published
  • 2016
  • Feature
  • Pick and Place, Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Applications
  • Automotive, General Purpose, Industrial, Lighting, Medical
  • Number of Rows
  • 1
  • Voltage - Rated
  • 100V
  • Additional Feature
  • ROHS COMPLIANT, TAPE AND REEL
  • Fastening Type
  • Latch Holder
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Forked
  • Mixed Contacts
  • NO
  • Orientation
  • Vertical
  • Depth
  • 6.8mm
  • Insulation Height
  • 0.285 7.25mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 2A
  • Pitch - Mating
  • 0.059 1.50mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 1
  • Number of Contacts
  • 4
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.25 inch
  • Contact Gender
  • Female
  • Housing Color
  • Beige
  • Rated Current (Signal)
  • 2A
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 500000000Ohm

Download datasheets and manufacturer documentation for MOLEX 5025840460.

Datasheets:

Environmental Information:

3D Drawings:

RohsStatement:

5025840460 Overview


Currently, it is packaged in Receptacle.Mounting type Surface Mount is assigned to the device.Packaging the product involves using a Tape & Reel (TR) case.Among the products in the CLIK-Mate 502584 Series, it is one of the most popular.There are also other features, like ROHS COMPLIANT, TAPE AND REEL, to name a few.The device could be used for Automotive, General Purpose, Industrial, Lighting, Medical.A number of benefits can be derived from the Pick and Place, Solder Retention feature of this application.Surface Mount is the mounting point for the part.-40°C~105°C Operating Temperature is used by the device.

5025840460 Features


CLIK-Mate 502584 series


5025840460 Applications


There are a lot of Molex
5025840460 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
