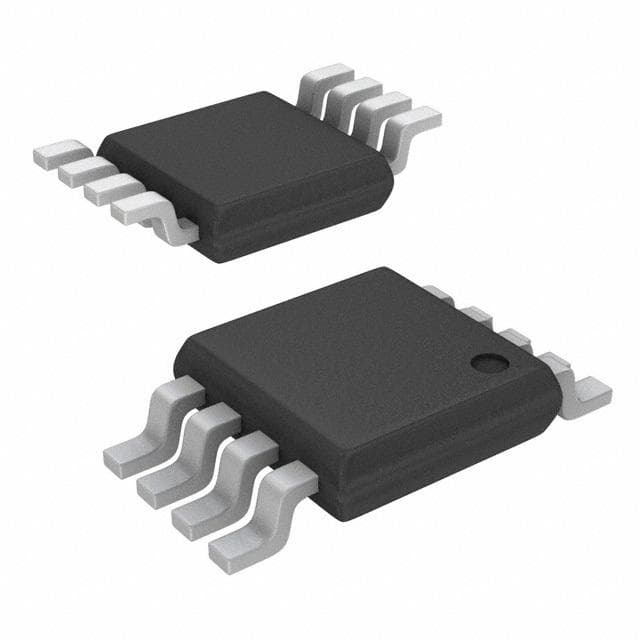

Renesas 501GLF
Manufacturer No:
501GLF
Manufacturer:
Package:
TSSOP
Description:
3.3V 160MHz Clock Generators 8 Pins TSSOP 8 Terminals Rail/Tube
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
501GLF information
Renesas 501GLF technical specifications, attributes, parameters and parts with similar specifications to Renesas 501GLF.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Number of Pins
- 8
- Packaging
- Rail/Tube
- Published
- 1999
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Additional Feature
- ALSO OPERATES AT 5V SUPPLY
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 8
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 5V
- Temperature Grade
- COMMERCIAL
- Max Supply Voltage
- 5.25V
- Min Supply Voltage
- 3V
- Operating Supply Current
- 20mA
- Frequency (Max)
- 160MHz
- Input
- Clock
- Primary Clock/Crystal Frequency-Nom
- 50MHz
- PLL
- Yes
- Max Duty Cycle
- 55 %
- Length
- 3mm
- Width
- 3mm
- Thickness
- 970?m
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas 501GLF.
501GLF Overview
The Rail/Tube method is used for packaging clock ICs. As part of the TSSOP package, this clock generator is embedded. This clock generator ic can sustain 260 degrees of temperature during reflowing. There are 8 terminations found in this file. To operate this time clock generator, 3.3V voltage should be applied. In this clock generator, Clock is used as the input to the clock. An up to 160MHz frequency is provided by this clock-based RF synthesizer. It is a 8-bit clock PLL designed specifically for microprocessors. There are 8 pins on the frequency generators that are available for use. There are 0°C operations that can be performed on this clock generator, which has impressive low-temperature performance. At 70°C, this RF synthesizer remains functional despite reduced performance. Supply voltage 5V is what clock generator can handle. There is a ALSO OPERATES AT 5V SUPPLY feature on this frequency generator in order to produce a better clock signal. 1 signal outputs are provided for enhancing output frequency as much as possible. There is no way that a voltage higher than 5.25V can be supplied to this clock generator. Powered by 3V, this clock generator has the lowest supply voltage limit. In order for it to fully perform time clock generator's functions, it needs a supply current of 20mA.
501GLF Features
Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 5V
501GLF Applications
There are a lot of Integrated Device Technology (IDT)
501GLF Clock Generators applications.
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
