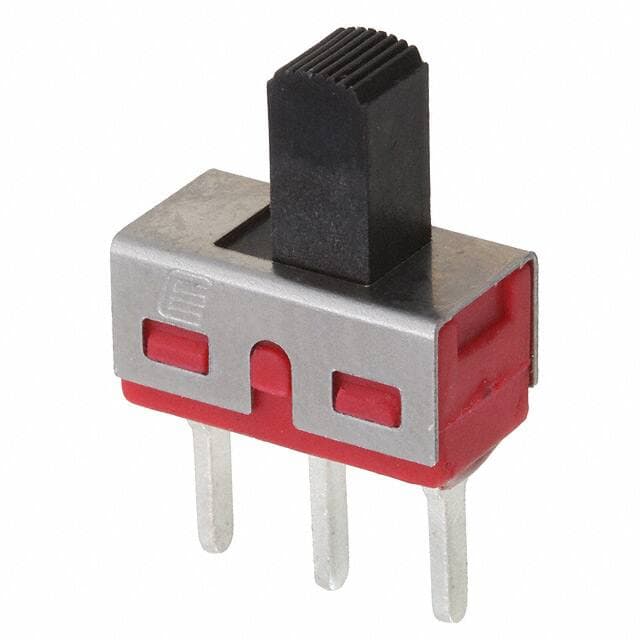

E-Switch 500SSP1S2M2QEA

Manufacturer No:

500SSP1S2M2QEA

Manufacturer:

E-Switch

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

500SSP1S2M2QEA information

E-Switch 500SSP1S2M2QEA technical specifications, attributes, parameters and parts with similar specifications to E-Switch 500SSP1S2M2QEA.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Actuator Material
Polyamide (PA), Nylon

Operating Temperature
-30°C~85°C

Packaging
Bulk

Series
500

Published
2008

Feature
Epoxy Sealed Terminals

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pin

Voltage - Rated DC
28V

Current Rating (Amps)
5A AC/DC

Orientation
Vertical

Current Rating
5A

Contact Finish
Silver

Termination Style
PC Pin

Voltage - Rated AC
120V

Actuator Type
Standard

Circuit
SPDT

Switch Function
On-On

Electrical Life
30,000 Cycles

Contact Current Rating
5A

Contact Timing
Not Specified

Switch Travel
2.16mm

Actuator Length
7.24mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for E-Switch 500SSP1S2M2QEA.

Datasheets:

eswitch-500ssp1s1m51rea-datasheets-3133.pdf

Environmental Information:

eswitch-accf021-environmentalinformation-1145.pdf

500SSP1S2M2QEA Description

Make sure that the contact load is within the specifi ed range; otherwise, the lifetime of the contacts will be shortened considerably. Note that the running performance shown is an example, and that it varies depending on parameters such as the type of load, switching frequency, driver circuit, and ambient temperature under the actual operating conditions. Evaluate the performance by using the actual circuit before using the relay.

500SSP1S2M2QEA Features

Single & double pole options

Multiple actuator height options

Panel & PC board mountable

500SSP1S2M2QEA Applications

Computer servers/peripherals

Consumer electronics

Instrumentation

Test & measurement
