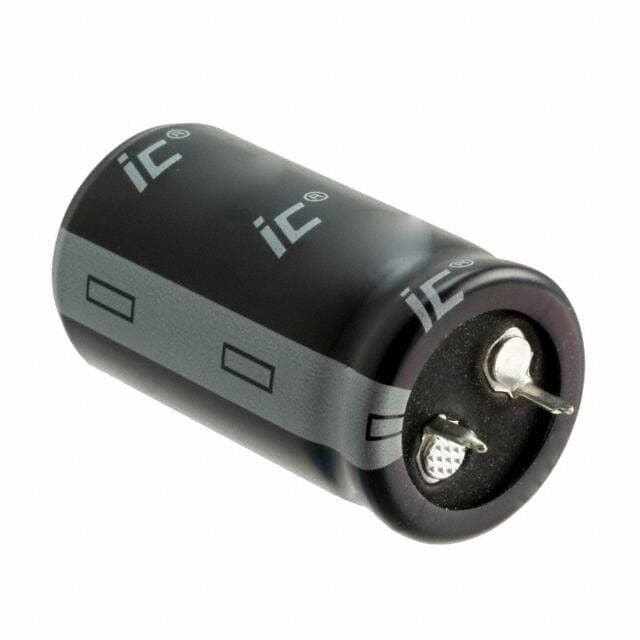

Illinois Capacitor 478LBA050M2BF
Illinois Capacitor 478LBA050M2BF

Illinois Capacitor 478LBA050M2BF

Manufacturer No:

478LBA050M2BF

Manufacturer:

Illinois Capacitor

Package:

Radial, Can - Snap-In

Description:

LBA 4700?F Capacitor ±20% Bulk Through Hole 2.91A 0.866Dia 22.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

478LBA050M2BF information

Illinois Capacitor 478LBA050M2BF technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 478LBA050M2BF.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • LBA
  • Published
  • 2013
  • Size / Dimension
  • 0.866Dia 22.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22
  • Capacitance
  • 4700?F
  • Voltage - Rated DC
  • 50V
  • Lead Pitch
  • 10.0076mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 4.7mA
  • Ripple Current
  • 2.91A
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 2.91A @ 120Hz
  • Ripple Current @ High Frequency
  • 3.6375A @ 10kHz
  • Custom Capabilities
  • Capacitance Tolerance
  • Diameter
  • 22mm
  • Height
  • 40mm
  • Height Seated (Max)
  • 1.654 42.00mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 478LBA050M2BF.

Datasheets:

Environmental Information:

478LBA050M2BF Overview


At full charge, the ripple current is 3.6375A @ 10kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 123.46mOhm so that it can fully perform its functions.The ripple current is 2.91A @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.654 42.00mm.The capacitor operates at a voltage of 50V - Rated DC.For high efficiency, the operating temperature should be -40°C~85°C.

478LBA050M2BF Features


the ripple current is 3.6375A @ 10kHz.
the ripple current is 2.91A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~85°C


478LBA050M2BF Applications


There are a lot of Illinois Capacitor
478LBA050M2BF applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
