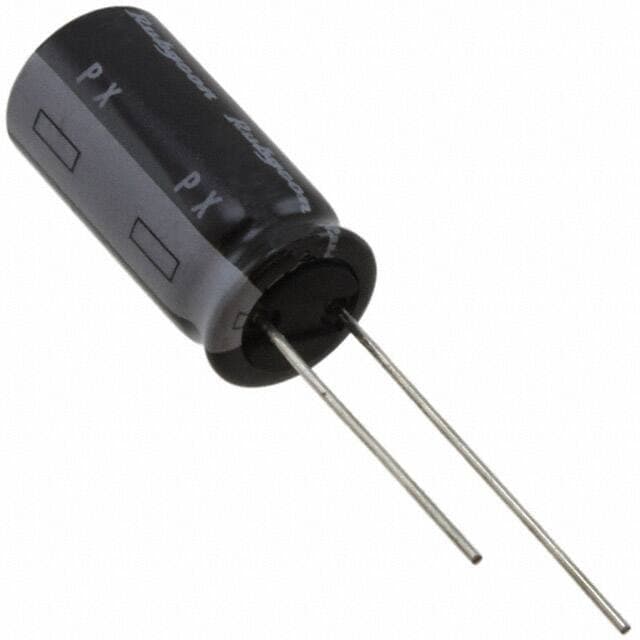

rubycon 450PX10MEFCT810X20

Manufacturer No:

450PX10MEFCT810X20

Manufacturer:

rubycon

Package:

Radial, Can

Description:

PX 10?F Capacitor ±20% Tape & Box (TB) Through Hole 37mA 0.394Dia 10.00mm -25°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

450PX10MEFCT810X20 information

rubycon 450PX10MEFCT810X20 technical specifications, attributes, parameters and parts with similar specifications to rubycon 450PX10MEFCT810X20.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
ALUMINUM

Operating Temperature
-25°C~105°C

Packaging
Tape & Box (TB)

Series
PX

Published
2015

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Applications
General Purpose

Voltage - Rated
450V

Capacitance
10?F

Terminal Pitch
5mm

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Rated (DC) Voltage (URdc)
450V

Lifetime @ Temp
2000 Hrs @ 105°C

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
37mA @ 120Hz

Ripple Current @ High Frequency
55.5mA @ 10kHz

Diameter
10mm

Height Seated (Max)
0.866 22.00mm

Length
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for rubycon 450PX10MEFCT810X20.

450PX10MEFCT810X20 Overview

Ripple current at full charge is 55.5mA @ 10kHz.It is 37mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.866 22.00mm.It is recommended that the device's rated voltage (URdc) be set to 450V (450V).It is recommended that the operating temperature be kept at -25°C~105°C to achieve high efficiency.

450PX10MEFCT810X20 Features

the ripple current is 55.5mA @ 10kHz.
the ripple current is 37mA @ 120Hz.
an operating temperature of -25°C~105°C

450PX10MEFCT810X20 Applications

There are a lot of Rubycon
450PX10MEFCT810X20 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
