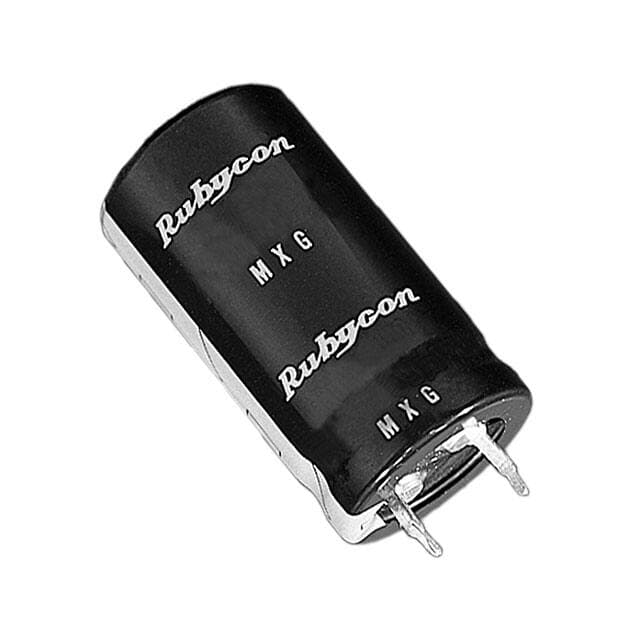

Rubycon 450MXG560MEFCSN35X45
Rubycon 450MXG560MEFCSN35X45

Rubycon 450MXG560MEFCSN35X45

Manufacturer No:

450MXG560MEFCSN35X45

Manufacturer:

Rubycon

Package:

Radial, Can - Snap-In

Description:

MXG 560?F Capacitor ±20% Bulk Through Hole 1.99A 1.378Dia 35.00mm -25°C~105°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

450MXG560MEFCSN35X45 information

Rubycon 450MXG560MEFCSN35X45 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 450MXG560MEFCSN35X45.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • MXG
  • Published
  • 2011
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 560?F
  • Voltage - Rated DC
  • 450V
  • Lead Pitch
  • 10mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Voltage
  • 450V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 1.50599mA
  • Ripple Current
  • 1.99A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 2.16A @ 120Hz
  • Ripple Current @ High Frequency
  • 3.024A @ 10kHz
  • Diameter
  • 35mm
  • Height
  • 45mm
  • Height Seated (Max)
  • 1.850 47.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 450MXG560MEFCSN35X45.

Datasheets:

450MXG560MEFCSN35X45 Overview


A full charge has a ripple current of 3.024A @ 10kHz volts.In the lowest charge, the ripple current is 2.16A @ 120Hz.Sitting height should not exceed 1.850 47.00mm (Max).A voltage of 450V DC operates this capacitor.Maintaining -25°C~105°C as the operating temperature will maximize efficiency.

450MXG560MEFCSN35X45 Features


the ripple current is 3.024A @ 10kHz.
the ripple current is 2.16A @ 120Hz.
voltage - Rated DC of 450V
an operating temperature of -25°C~105°C


450MXG560MEFCSN35X45 Applications


There are a lot of Rubycon
450MXG560MEFCSN35X45 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
