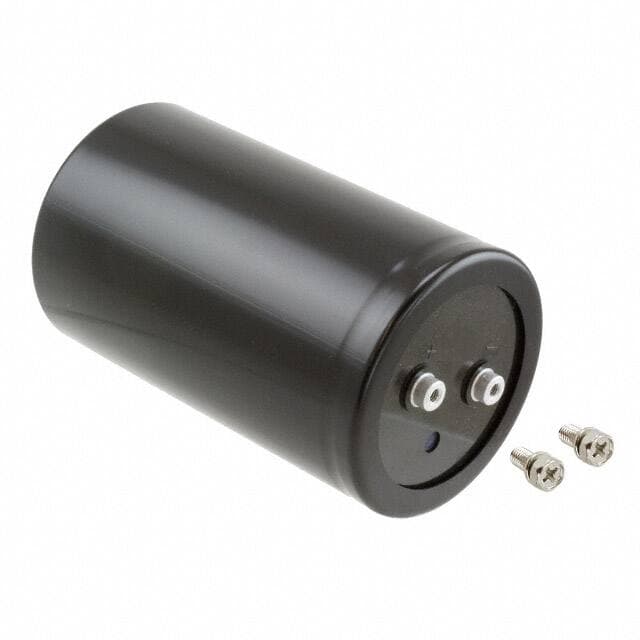

rubycon 450LSU6800MNB77X191
Manufacturer No:
450LSU6800MNB77X191
Manufacturer:
Package:
Radial, Can - Screw Terminals
Description:
LSU 6800?F Capacitor ±20% Bulk Chassis Mount 19.2A 3.032Dia 77.00mm -25°C~85°C Polar 31.3944mm Radial, Can - Screw Terminals
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
450LSU6800MNB77X191 information
rubycon 450LSU6800MNB77X191 technical specifications, attributes, parameters and parts with similar specifications to rubycon 450LSU6800MNB77X191.
- Type
- Parameter
- Factory Lead Time
- 20 Weeks
- Mount
- Chassis Mount
- Mounting Type
- Chassis Mount
- Package / Case
- Radial, Can - Screw Terminals
- Terminal Shape
- BINDING POST
- Dielectric Material
- ALUMINUM (WET)
- Operating Temperature
- -25°C~85°C
- Packaging
- Bulk
- Series
- LSU
- Published
- 2015
- Size / Dimension
- 3.032Dia 77.00mm
- Tolerance
- ±20%
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Applications
- General Purpose
- Voltage - Rated
- 450V
- Capacitance
- 6800?F
- Lead Pitch
- 31.3944mm
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing
- 1.236 31.40mm
- Rated (DC) Voltage (URdc)
- 450V
- Lifetime @ Temp
- 5000 Hrs @ 85°C
- Ripple Current
- 19.2A
- Polarization
- Polar
- Life (Hours)
- 5000 hours
- Tan Delta
- 0.25
- Ripple Current @ Low Frequency
- 19.2A @ 120Hz
- Ripple Current @ High Frequency
- 26.88A @ 10kHz
- Height Seated (Max)
- 7.638 194.00mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for rubycon 450LSU6800MNB77X191.
450LSU6800MNB77X191 Overview
Full charge should result in a ripple current of 26.88A @ 10kHz.If the charge is low, ripple current is 19.2A @ 120Hz.Keep your seated height below 7.638 194.00mm.In order to operate the device at its rated (DC) voltage, the rated voltage (URdc) should be set to 450V.The maximum efficiency can be achieved by maintaining -25°C~85°C as the operating temperature.
450LSU6800MNB77X191 Features
the ripple current is 26.88A @ 10kHz.
the ripple current is 19.2A @ 120Hz.
an operating temperature of -25°C~85°C
450LSU6800MNB77X191 Applications
There are a lot of Rubycon
450LSU6800MNB77X191 applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
