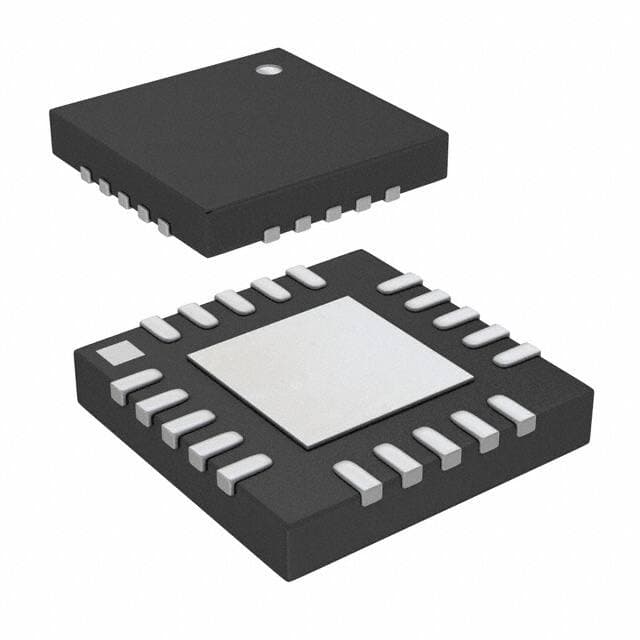

pSemi 4306-52

Manufacturer No:

4306-52

Manufacturer:

pSemi

Package:

20-WFQFN Exposed Pad

Description:

0Hz~4GHz 31dB 20-WFQFN Exposed Pad Tape & Reel (TR) 50Ohms

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

4306-52 information

pSemi 4306-52 technical specifications, attributes, parameters and parts with similar specifications to pSemi 4306-52.

Type
Parameter

Package / Case
20-WFQFN Exposed Pad

Number of Pins
20

Packaging
Tape & Reel (TR)

Series
UltraCMOS®

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Impedance
50Ohms

Nominal Supply Current
100?A

Number of Bits
5

Frequency Range
0Hz~4GHz

Attenuation Value
31dB

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for pSemi 4306-52.

Datasheets:

psemi-430600-datasheets-7926.pdf

psemi-351352-datasheets-2654.pdf

4306-52 Overview

This Attenuator is part of the UltraCMOS® series.Packaging for the optical attenuator consists of Tape & Reel (TR) solid enclosures.The RF Attenuator can be shipped overseas conveniently because it is packaged in 20-WFQFN Exposed Pad.The functions of 20 pins can be found in the RF Attenuator.The Attenuator should operate at -40°C degrees according to test statistics.During operation, the RF Attenuator should not be exposed to a temperature above 85°C.

4306-52 Features

UltraCMOS® series
-40°C degrees Celsius
20 pins
Above 85°C degrees Celsius

4306-52 Applications

There are a lot of pSemi
4306-52 Attenuators applications.

LTE
UMB
WiMAX
WiBN
Fixed Wireless
Test Equipment
Sensors
GSM
WCDMA
TD-SCDMA
