ST 3STL2540
ST 3STL2540

ST 3STL2540

Manufacturer No:

3STL2540

Manufacturer:

ST

Package:

3-PowerUDFN

Description:

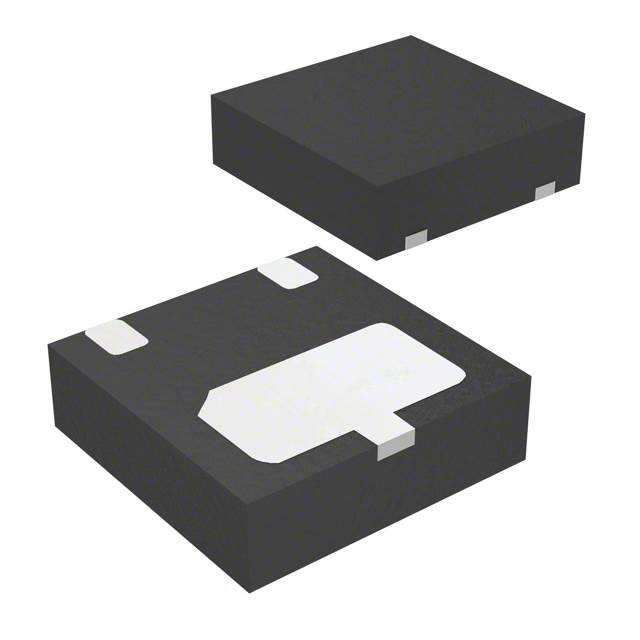

PNP 150°C TJ 100nA ICBO PNP 3-PowerUDFN Tape & Reel (TR) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

3STL2540 information

ST 3STL2540 technical specifications, attributes, parameters and parts with similar specifications to ST 3STL2540.

  • Type
  • Parameter
  • Lifecycle Status
  • NRND (Last Updated: 7 months ago)
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 3-PowerUDFN
  • Number of Pins
  • 3
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 1.2W
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • 3STL25
  • Configuration
  • Single
  • Power - Max
  • 1.2W
  • Polarity/Channel Type
  • PNP
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 200mV
  • Max Collector Current
  • 5A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 210 @ 2A 2V
  • Current - Collector Cutoff (Max)
  • 100nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 200mV @ 10mA, 1A
  • Max Breakdown Voltage
  • 40V
  • Frequency - Transition
  • 130MHz
  • Collector Base Voltage (VCBO)
  • 40V
  • Emitter Base Voltage (VEBO)
  • -6V
  • hFE Min
  • 100
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST 3STL2540.

Datasheets:

3STL2540 Overview


As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 210 @ 2A 2V.In VCE saturation, Ic is at its maximum value (saturated), and the vce saturation (Max) is 200mV @ 10mA, 1A.The emitter base voltage can be kept at -6V for high efficiency.The breakdown input voltage is 40V volts.Single BJT transistor is possible to have a collector current as low as 5A volts at Single BJT transistors maximum.

3STL2540 Features


the DC current gain for this device is 210 @ 2A 2V
the vce saturation(Max) is 200mV @ 10mA, 1A
the emitter base voltage is kept at -6V


3STL2540 Applications


There are a lot of STMicroelectronics
3STL2540 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
