Pomona Electronics 3778
Manufacturer No:
3778
Manufacturer:
Package:
Description:
Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder Cup 1 Port Polytetrafluoroethylene (PTFE)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
3778 information
Pomona Electronics 3778 technical specifications, attributes, parameters and parts with similar specifications to Pomona Electronics 3778.
- Type
- Parameter
- Factory Lead Time
- 2 Weeks
- Mount
- Bulkhead, Panel, Rear Side Nut
- Mounting Type
- Panel Mount
- Mounting Feature
- Bulkhead - Rear Side Nut
- Insulation Material
- Polytetrafluoroethylene
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Body Material
- Brass
- Center Contact Plating
- Gold
- Center Contact Material
- Beryllium Copper
- Packaging
- Bulk
- Published
- 2002
- JESD-609 Code
- e4
- Feature
- Isolated
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- ECCN Code
- EAR99
- Connector Type
- Jack, Female Socket
- Gender
- Female
- Additional Feature
- TARNISH RESISTANT
- Fastening Type
- Bayonet Lock
- MIL Conformance
- NO
- DIN Conformance
- NO
- IEC Conformance
- NO
- Option
- GENERAL PURPOSE
- Orientation
- Straight
- Depth
- 16mm
- Housing Color
- Silver
- Polarity
- Standard
- Body/Shell Style
- RECEPTACLE
- Impedance
- 50Ohm
- Connector Style
- BNC
- Number of Ports
- 1
- Contact Termination
- Solder Cup
- Includes

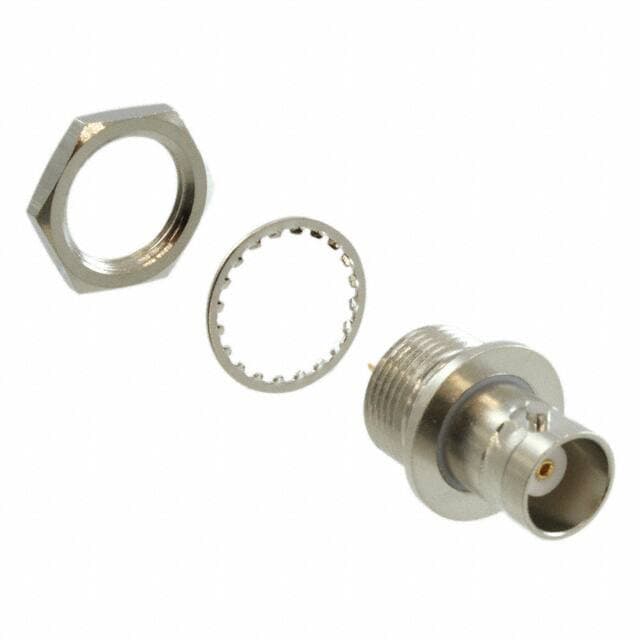

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Body Finish
- Nickel
- Shield Termination
- Solder
- Length
- 27.18mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Pomona Electronics 3778.
Datasheets:
ReachStatement:
3778 Overview
This product is packaged in a Jack, Female Socket cartonPanel Mount is the mounting type of the device.We pack the product in a Bulk case.As well as TARNISH RESISTANT, to name a few.With 1 ports, you can manage all kinds of stuff.A number of advantages can be derived from its Isolated feature.This part is mounted by Bulkhead, Panel, Rear Side Nut.
3778 Features
3778 Applications
There are a lot of Pomona Electronics
3778 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
