Winchester 364M2795

Manufacturer No:

364M2795

Manufacturer:

Winchester

Package:

Description:

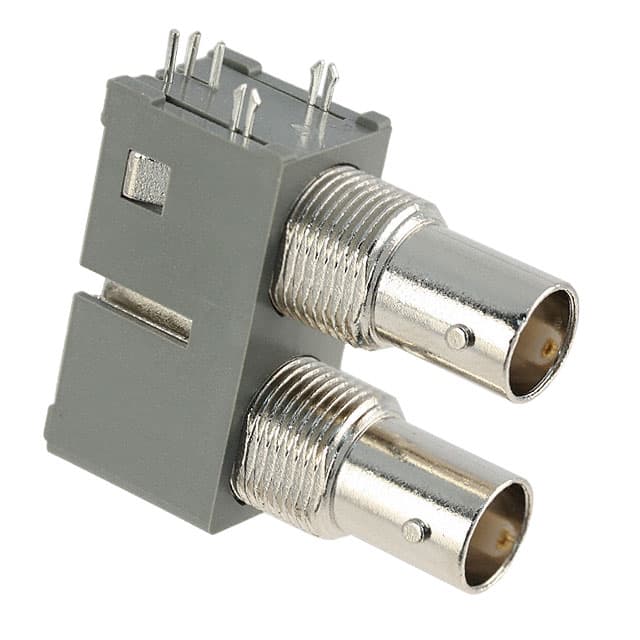

RF BNC Connector, 1+1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

364M2795 information

Winchester 364M2795 technical specifications, attributes, parameters and parts with similar specifications to Winchester 364M2795.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
WINCHESTER INTERCONNECT

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8536.69.40.10

Samacsys Manufacturer
Winchester Interconnect

Additional Feature
ROHS COMPLIANT

Body/Shell Style
JACK

Characteristic Impedance
75 Ω

Connector Type
RF BNC CONNECTOR

Contact Finish Termination
Nickel (Ni)

Contact Gender
FEMALE

Contact Resistance
3 mΩ

Contact Style
COAX

Dielectric Withstanding Voltage
2100VAC V

Durability
500 Cycles

Insulation Resistance
5000000000 Ω

Insulator Material
POLYPROPYLENE

Mounting Option 1
LOCKING

Mounting Style
RIGHT ANGLE

Mounting Type
BOARD

Number of Ports
2

Operating Frequency-Max
1 GHz

Operating Temperature-Min
-40 °C

Shell Finish
NICKEL

Shell Material
BRASS

Termination Type
SOLDER

Total Number of Contacts
2

VSWR
1.3

Download datasheets and manufacturer documentation for Winchester 364M2795.

Datasheets:

NTGM-S-A0019601723-1.pdf

364M2795 Overview

Packaging is Jack, Female Socket.This device has a Panel Mount, Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Dual 364 Series.A variety of tasks can be performed using its 2 ports.Devices operate at -40°C~165°C operating temperatures.

364M2795 Features

Dual 364 series

364M2795 Applications

There are a lot of Winchester Interconnect
364M2795 Coaxial Connectors applications.

Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
