Winchester 364A2795

Manufacturer No:

364A2795

Manufacturer:

Winchester

Package:

Description:

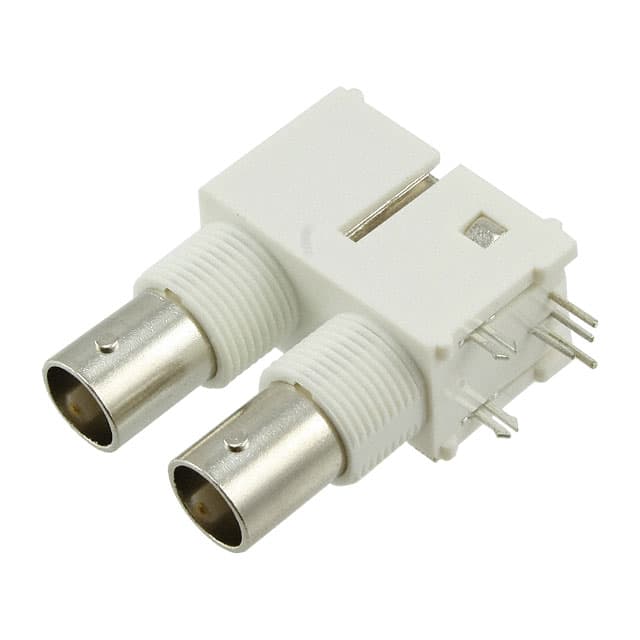

Jack, Female Socket Bayonet Lock 75Ohm Tray BNC Solder 2 Port Polypropylene (PP) -55°C~105°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

364A2795 information

Winchester 364A2795 technical specifications, attributes, parameters and parts with similar specifications to Winchester 364A2795.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Panel Mount, Through Hole, Right Angle

Mounting Feature
Bulkhead - Front Side Nut

Dielectric Material
Polypropylene (PP)

Body Material
Zinc Die Cast

Mounting Option 1
LOCKING

Center Contact Plating
Gold

Center Contact Material
Phosphor Bronze

Operating Temperature
-55°C~105°C

Packaging
Tray

Series
Dual 364

Published
2013

Feature
Board Lock, Isolated

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

HTS Code
8536.69.40.10

Fastening Type
Bayonet Lock

Total Number of Contacts
2

Ingress Protection
Weatherproof

Reach Compliance Code
unknown

Reliability
COMMERCIAL

Contact Style
COAX

Contact Resistance
3mOhm

Impedance
75Ohm

Connector Style
BNC

Number of Ports
2

Frequency (Max)
1GHz

Mating Cycles
500

Contact Termination
Solder

Operating Frequency-Max
1GHz

Insertion Loss
0.2dB

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 364A2795.

Datasheets:

winchesterinterconnect-bddhd100-datasheets-1035.pdf

364A2795 Overview

The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Dual 364 Series.The device has 2 ports that can be used to manage a variety of tasks.There are a number of advantages to its Board Lock, Isolated feature.As a result, the device runs at -55°C~105°C Operating Temperature.

364A2795 Features

Dual 364 series

364A2795 Applications

There are a lot of Winchester Interconnect
364A2795 Coaxial Connectors applications.

Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
