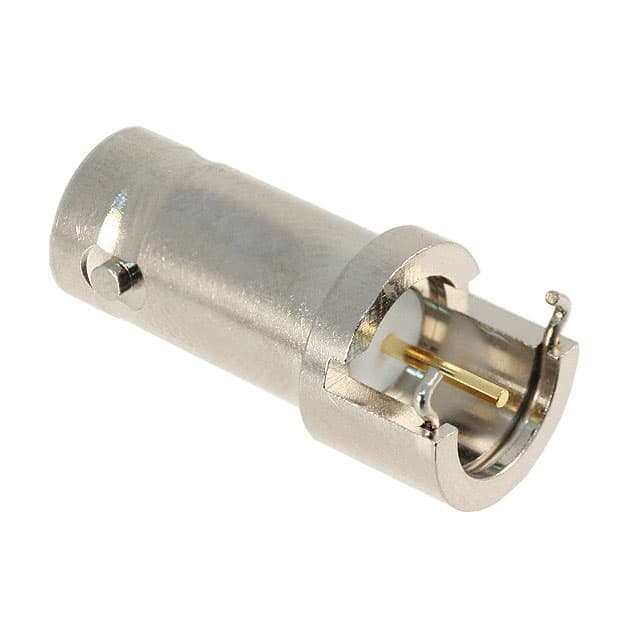

Winchester 361V504ER

Manufacturer No:

361V504ER

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Bayonet Lock 50Ohm Tray BNC Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

361V504ER information

Winchester 361V504ER technical specifications, attributes, parameters and parts with similar specifications to Winchester 361V504ER.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Board Edge, End Launch

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-65°C~165°C

Packaging
Tray

Series
V-Bite®

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Bayonet Lock

Ingress Protection
Weatherproof

Reach Compliance Code
unknown

Housing Color
Silver

Impedance
50Ohm

Connector Style
BNC

Number of Ports
1

Frequency (Max)
4GHz

Mating Cycles
500

Contact Termination
Solder

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 361V504ER.

Datasheets:

winchesterinterconnect-861v509er6-datasheets-7079.pdf

361V504ER Overview

This product is packaged in a Jack, Female Socket box.There is a Board Edge, End Launch mounting type for the device.This product is packaged in a case marked Tray.Product number V-Bite® belongs to the V-Bite® Series.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -65°C~165°C.
