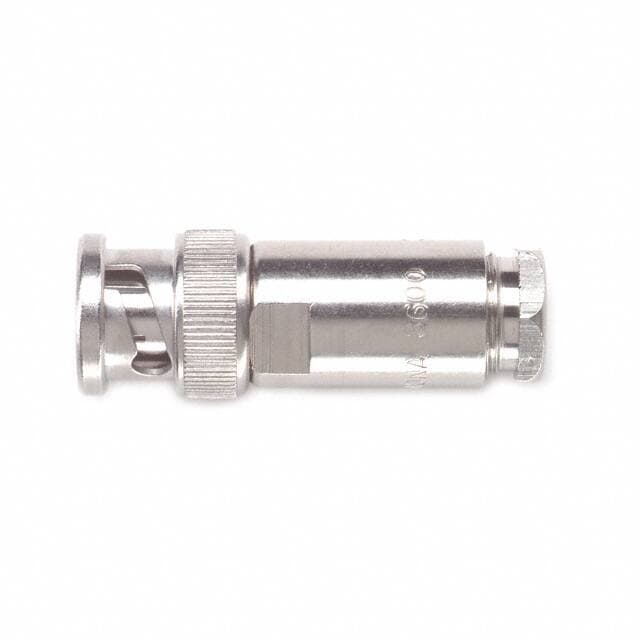

Pomona Electronics 3600
Manufacturer No:
3600
Manufacturer:
Package:
Description:
Plug, Male Pin Bayonet Lock 50Ohm Bulk BNC, Triaxial Solder 1 Port Polytetrafluoroethylene (PTFE)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
3600 information
Pomona Electronics 3600 technical specifications, attributes, parameters and parts with similar specifications to Pomona Electronics 3600.
- Type
- Parameter
- Factory Lead Time
- 2 Weeks
- Contact Material
- Brass, Copper
- Mount
- Cable, Free Hanging
- Mounting Type
- Free Hanging (In-Line)
- Insulation Material
- Teflon
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Body Material
- Brass
- Center Contact Plating
- Gold
- Packaging
- Bulk
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- ECCN Code
- EAR99
- Connector Type
- Plug, Male Pin
- Gender
- Male
- Fastening Type
- Bayonet Lock
- MIL Conformance
- NO
- DIN Conformance
- NO
- IEC Conformance
- NO
- Option
- GENERAL PURPOSE
- Orientation
- Straight
- Reach Compliance Code
- unknown
- Housing Color
- Silver
- Polarity
- Standard
- Impedance
- 50Ohm
- Number of Ports
- 1
- Contact Termination
- Solder
- Includes
- 11 pcs - 1 Connector, 1 Braid Clamp, 1 Bushing, 1 Clamp, 1 Contact, 1 Gasket, 1 Outer Contact, 1 Retainer, 2 Sleeves, 1 Washer
- Max Frequency
- 4GHz
- Body Finish
- Nickel
- Cable Group
- Belden 9272
- Shield Termination
- Clamp
- Diameter
- 12.7mm
- Length
- 38.1mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Pomona Electronics 3600.
Datasheets:
ReachStatement:
3600 Overview
The packaging contains Plug, Male Pin.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.The device has 1 ports that can be used to manage a variety of tasks.Part Cable, Free Hanging is mounted to the part.This device is capable of reaching a maximum frequency of 4GHz.
3600 Features
3600 Applications
There are a lot of Pomona Electronics
3600 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
